ME 806

2-way-coaxial-compact-loudspeaker in vented box

The compact ME 806 amplifies Musikelectronic Geithain’s 800 Line product range. The two-way concept comprises an 8-inch woofer system and a tweeter array of three vertically arranged 1-inch tweeter calottes.

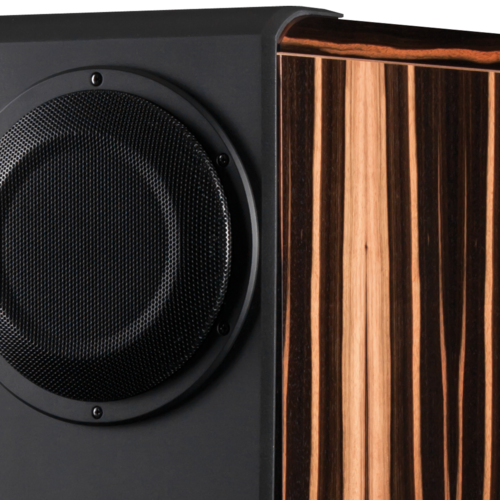

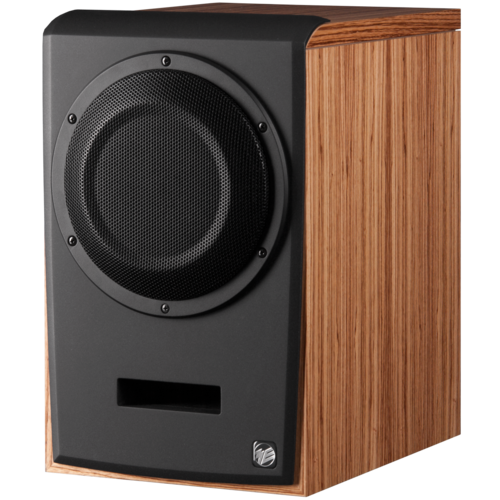

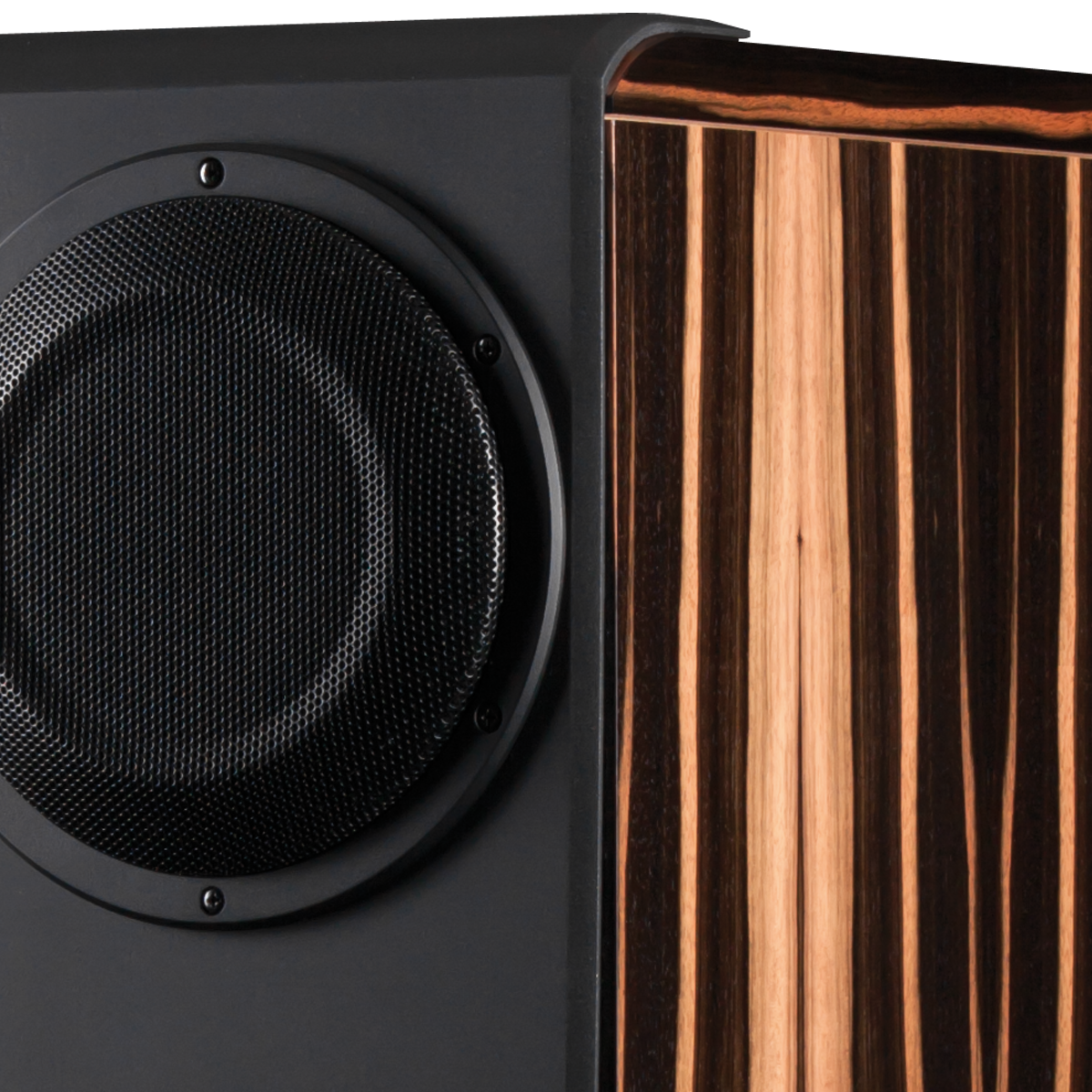

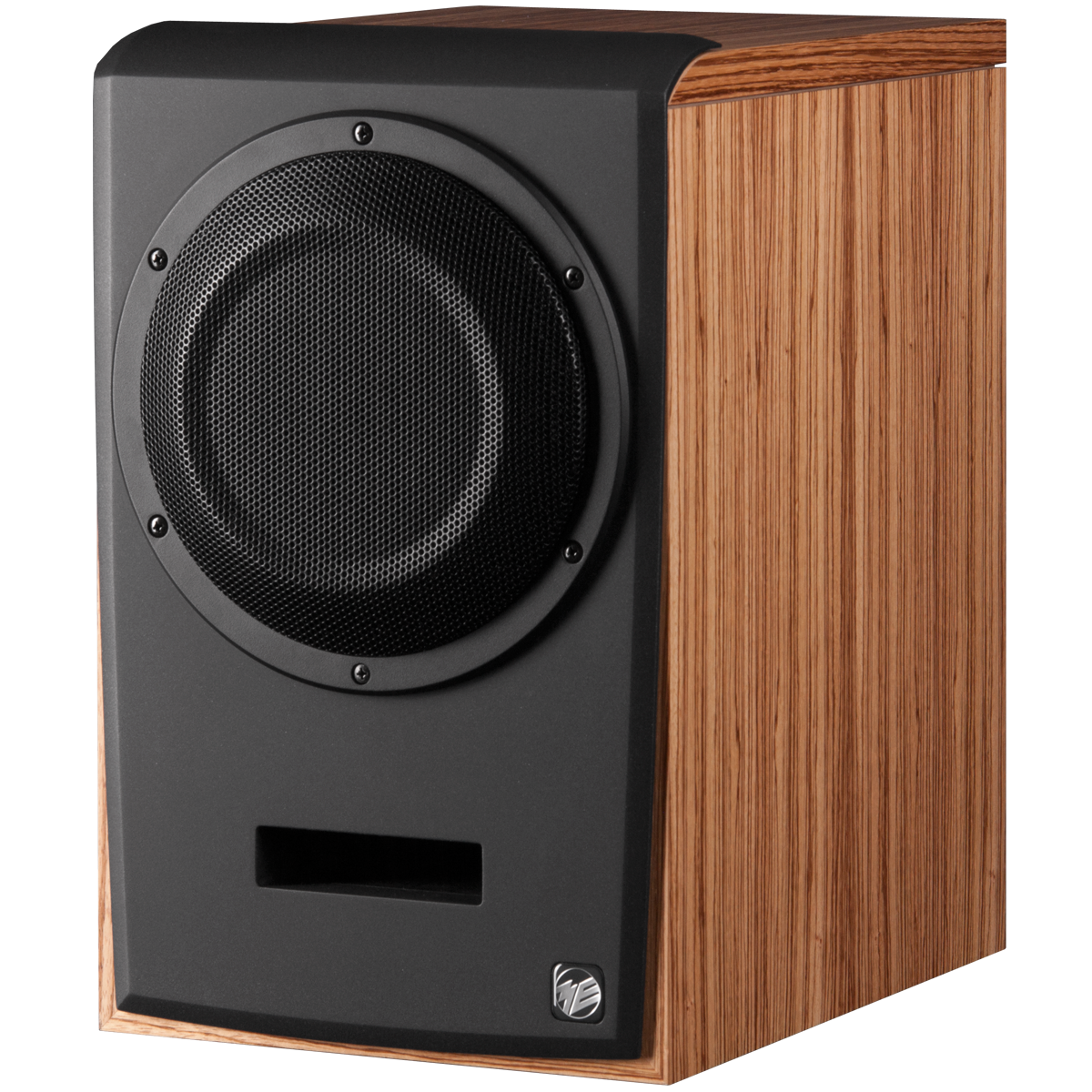

(shown veneer: zebrawood nature, macassar nature)

ME 806

The compact ME 806 amplifies Musikelectronic Geithain’s 800 Line product range. The two-way concept comprises an 8-inch woofer system and a tweeter array of three vertically arranged 1-inch tweeter calottes. The directivity index of the system has been optimised to listening distances between 2.5 and 4 metres, providing a natural sound image in stereo and multi-channel operation. The bass reflex system, designed to deliver optimal transient fidelity, ensures a precise and dry bass reproduction down to a threshold frequency of 38 Hz. Thanks to the powerful integrated analogue amplifiers and the high system sensitiveness, this loudspeaker combines flawless homogeneity with a dynamic range that is unrivalled in a two-way system. The result is that non-linear distortions stay extremely low even at high reproducing levels. Moreover, the loudspeaker features group delay time optimisation.

The power amplifier module with electronic crossover is integrated into the rear wall of the cabinet. An intermittent LED signalises overmodulation. If the maximum level is exceeded, the output level will be attenuated by 20 dB in order to protect the components from overloading. A room compensation network, integrated into the amplifier electronics, allows to influence the room-related frequency response within two continuously variable frequency bands.

Frequently used wave guides in front of tweeter systems make directivity control easy; however they tend to produce unavoidable discolorations caused by short-time reflections at the inner horn surface. Musikelectronic Geithain breaks the mould by using a tweeter array and doing without systems with horn attachments for sound level boost. The tweeter unit that is arranged coaxially in front of the midrange system guarantees the trademark low-coloration rendition of music and speech and creates the sound event closeness desired by the listener.

Summing up all the constructive measures, the ME 806 achieves seamless sound compatibility with all other products made in the Geithain manufacture. The highly neutral tone quality, excellent spatial performance and depth arrangement, together with fatigue-free monitoring of even most complex sound events are typical ME Geithain characteristics of this loudspeaker.

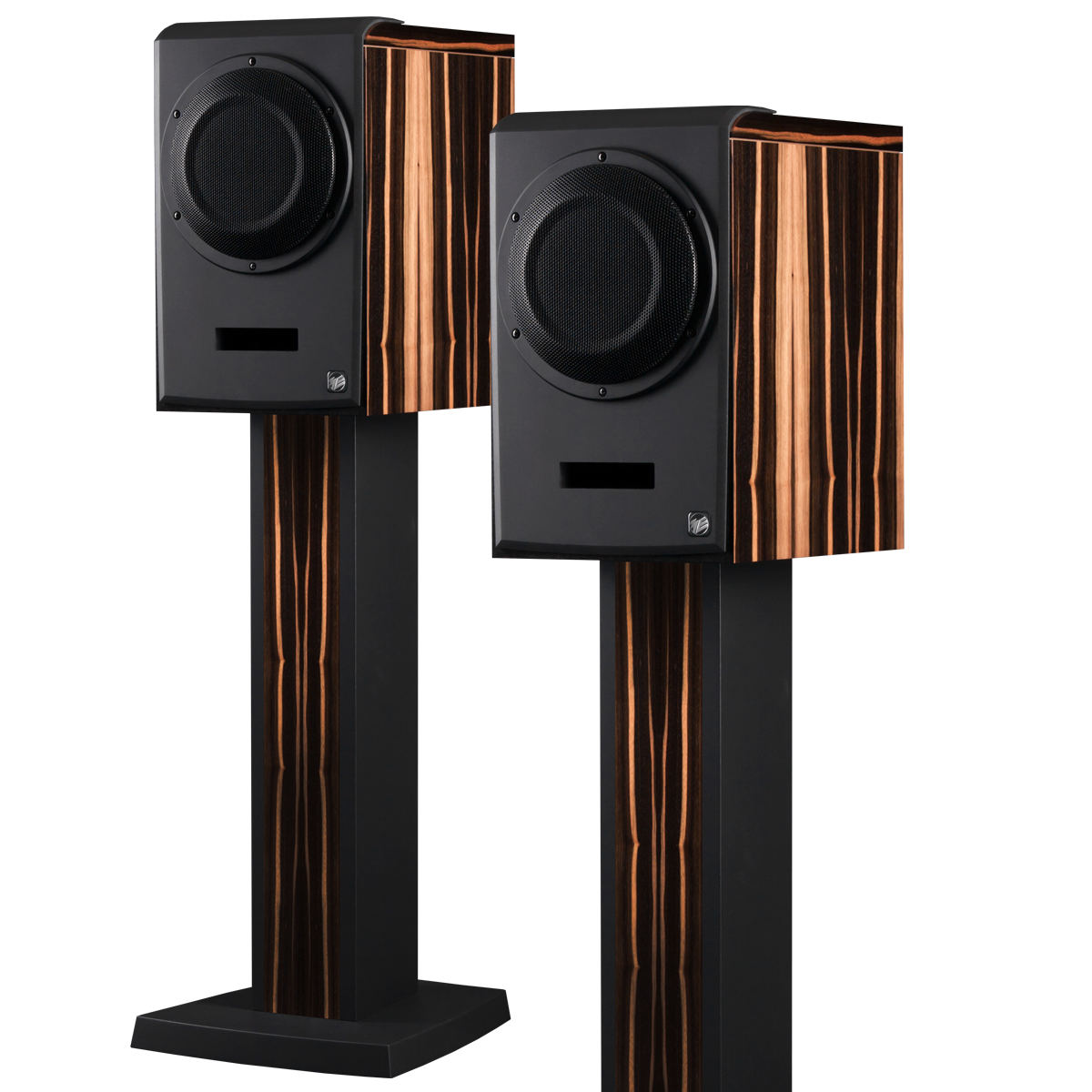

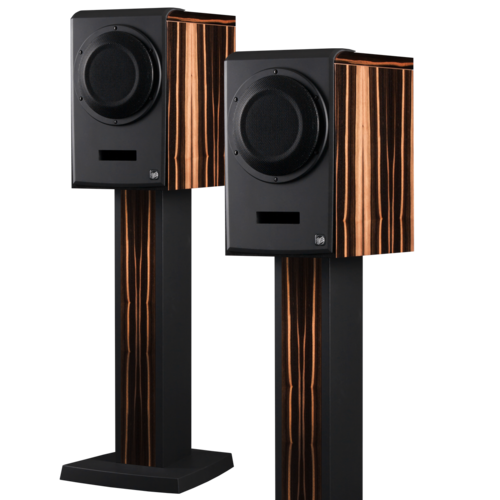

The compact ME806 is available with an optional monitor stand. With or without stand, this loudspeaker will harmonise perfectly with your listening room due to its attractive design and the large variety of different wood veneers or high-gloss or semi-matt varnish surfaces.

General

active 2-way high-performance-loudspeaker for listening distances between 2.50 and 4 m

Maximum SPL
from 100 Hz ... 6 kHz


110 ... 116 dB / r = 1 m (3.3 ft)

Bandwith

38 Hz ... 20 kHz ± 3 dB

Calibration:
Acoustic output level / PE = - 14 dBu

89 dB / r = 1 m (3.3 ft)

Directivity index
from 100 Hz ... 10 kHz


inreasing from 4 to 13 dB

Inherent noise sound level

≤ 10 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
messured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 40 dB

Nominal Input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic crossover frequency

1.8 kHz

Nominal output power amplifier

LF
150 Watt / 4 Ohm
HF
100 Watt / 4 Ohm

Power requirements

230 Volt ≈ ± 10 %, AC, 50 Hz
115 Volt ≈ ± 10 %, AC, 60 Hz (optional)
100 Volt ≈ ± 10 %, AC, 60 Hz (optional)

Power consumption

30 VA at standby
max. 180 VA at full load

Mains connection

IEC power connector

Operation and Clipping indicator

LED on front side

Input connector

XLR 3F

Loudspeaker systems

Woofer
1x 205 mm (8") cone
Tweeter
3x 25 mm (1") dome

Dimensions (h x w x d)

Loudspeaker
405 x 254 x 345 mm (15.9 x 10 x 13.6 in)
Pedestal
695 x 320 x 365 mm (27.4 x 12.6 x 14.4 in)

Weight

Loudspeaker
18.6 kg (40.3 lbs)
Pedestal
6.8 kg (14.7 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %

Design of the cabinet

corpus
MDF-wood in ash black veneer; optional different veneers or colors
acoustic baffle
MDF-wood in microstructure semi gloss black
holding device
none; optional with holding device

Pedestal

optional

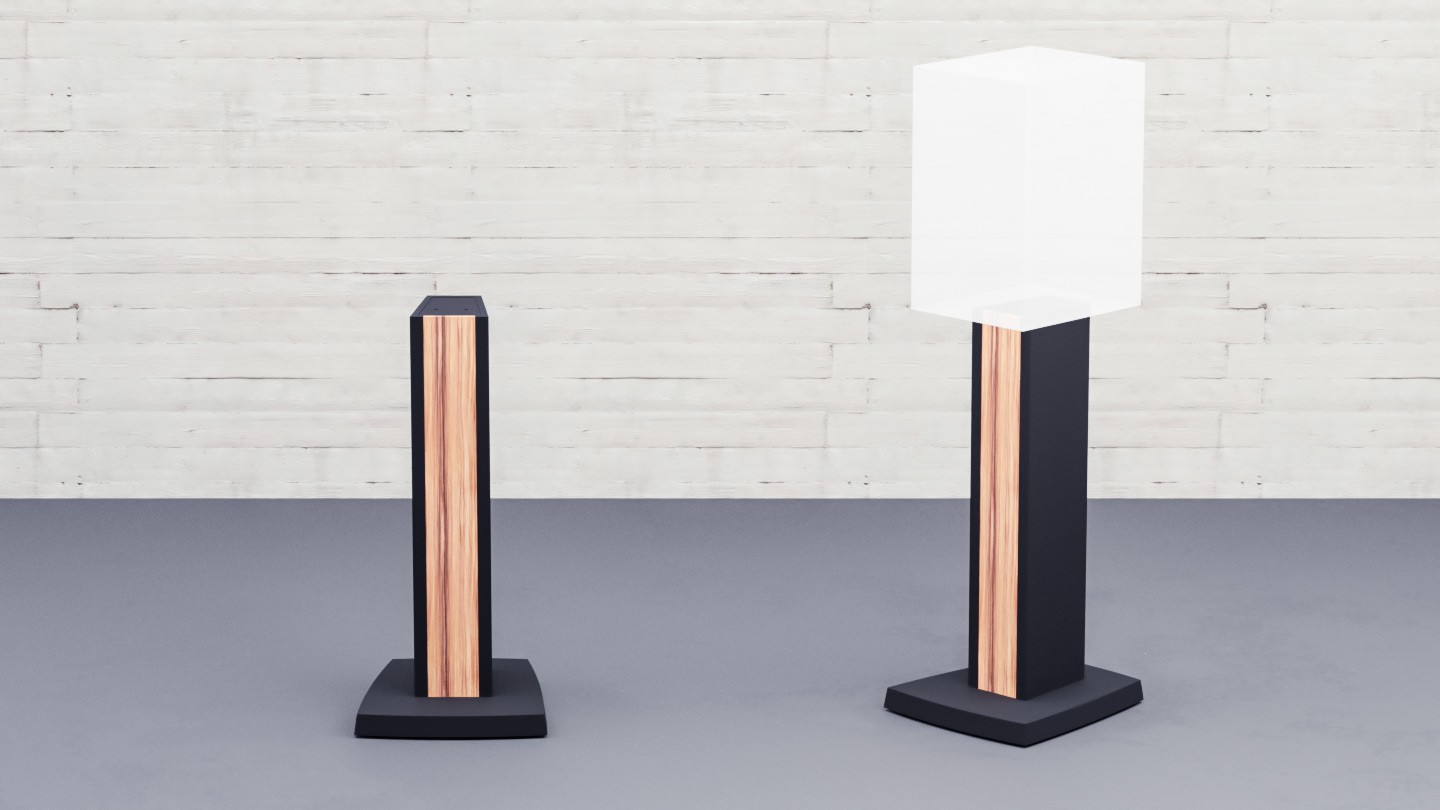

Pedestal

  • Integrated cable duct in the pedestal
  • Dimensions (H x B x T): 695 mm x 320 x 365 mm (27.4 x 12.6 x 14.4 in)
  • Overall height (Top edge loudspeaker): 1100 mm (43.3 in)
  • Design: MDF-wood in microstructure semi gloss black and veneer

Brochure and Documentation

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
