ME 801K

3-way-coaxial-compact-loudspeaker with cardioid radiation characteristic in bass range

The 3-way concept of the ME 801K consists of a 15-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes. The directivity of the system has been optimised for listening distances of between three and six metres, rendering a natural sound image in stereo and multichannel operation.

(shown veneer: american cherry stained)

ME 801K

The 3-way concept of the ME 801K consists of a 15-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes. The directivity of the system has been optimised for listening distances of between three and six metres, rendering a natural sound image in stereo and multichannel operation. One 1000 W and two 500 W amplifier modules supply the bass, mid and treble channels with sufficient power. The resulting overload safety ensures that even signals with highest peak levels are not limited. Also, sound pressure levels of up to 122 dB can be performed without audible distortions throughout the effective frequency range. A room compensation network, integrated into the amplifier electronics, allows control of the room-dependent frequency response.

With the 15-inch woofer, a directivity index is provided which will ensure realistic bass presence even at listening distances of up to six metres. Our reliable K Technology minimises rearward-directed room reflections in the bass range and simplifies the positioning of the ME 801K in the listening room.

The low-discolouration and low-distortion characteristics of the 6.5-inch high-performance midrange system result from the intelligent combination of several construction details. The cone loudspeaker, for example, runs without contact to the enclosure, thus avoiding the problem of cabinet resonances. Instead, the midrange system is operated with a rearward-directed acoustic flow resistor in order to achieve the desired directivity.

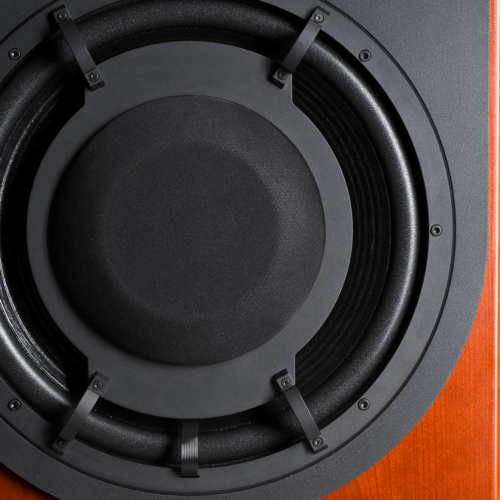

Frequently used wave guides in front of tweeter systems make directivity control easy. However, they tend to produce unavoidable discolourations due to short-time reflections on the inner horn surface. We take a different approach by using a tweeter array and doing without horn loudspeaker systems for sound level enhancement. The tweeter unit that is arranged coaxially in front of the midrange system guarantees the trademark low-colouration reproduction of sound events in our loudspeakers.

All these features make the ME 801K so unique on the loudspeaker market. It has been optimised for large listening distances and for acoustically less attenuated rooms.

General

active 3-way high-performance-loudspeaker for listening distances between 3 and 6 m

Maximum SPL

to IEC 268-1
≥ 117 dB
Programme material
122 dB peak / r = 1 m (3.3 ft)

Bandwidth

25 Hz ... 22 kHz - 6 dB

Calibration:
Acoustic output level / PE = - 14 dBu


90 dB / r = 1 m (3.3 ft)

Directivity index
from 100 Hz ... 10 kHz


increasing from 4 to 10 dB

Inherent noise sound level

≤ 10 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 100 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 45 dB

Nominal Input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic Crossover frequencies

550 Hz and 2.2 kHz

Output power PWM-amplifier

LF
Max. 1000 Watt / 4 Ohm
MF
Max. 500 Watt / 4 Ohm
HF
Max. 500 Watt / 4 Ohm

Power requirements

90 ... 132 V, 55 ... 65 Hz
190 ... 265 V, 45 ... 55 Hz

Power consumption

30 VA at standby
max. 1000 VA at full load

Mains Connection

IEC power connector with HF-filter

Operation and Clipping indicator

LED on front side

Input Connector

XLR 3F (programme input)

Output Connector

XLR 3M (bass expansion)

Loudspeaker systems

Woofer
1x 400 mm (15") cone
Mid-range unit
1x 160 mm (6") cone
Tweeter
3x 25 mm (1") dome

Dimensions (H x W x D)

561 x 500 x 441 mm (22.1 x 19.7 x 17.4 in)

Weight

48 kg (105.6 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %

Design of the Cabinet

corpus
MDF-wood in ash black veneered; optional different veneers or colors
acoustic baffle
MDF-wood in microstructure semi gloss black
holding device
none; optional with holding device
handles
none; optional with handles

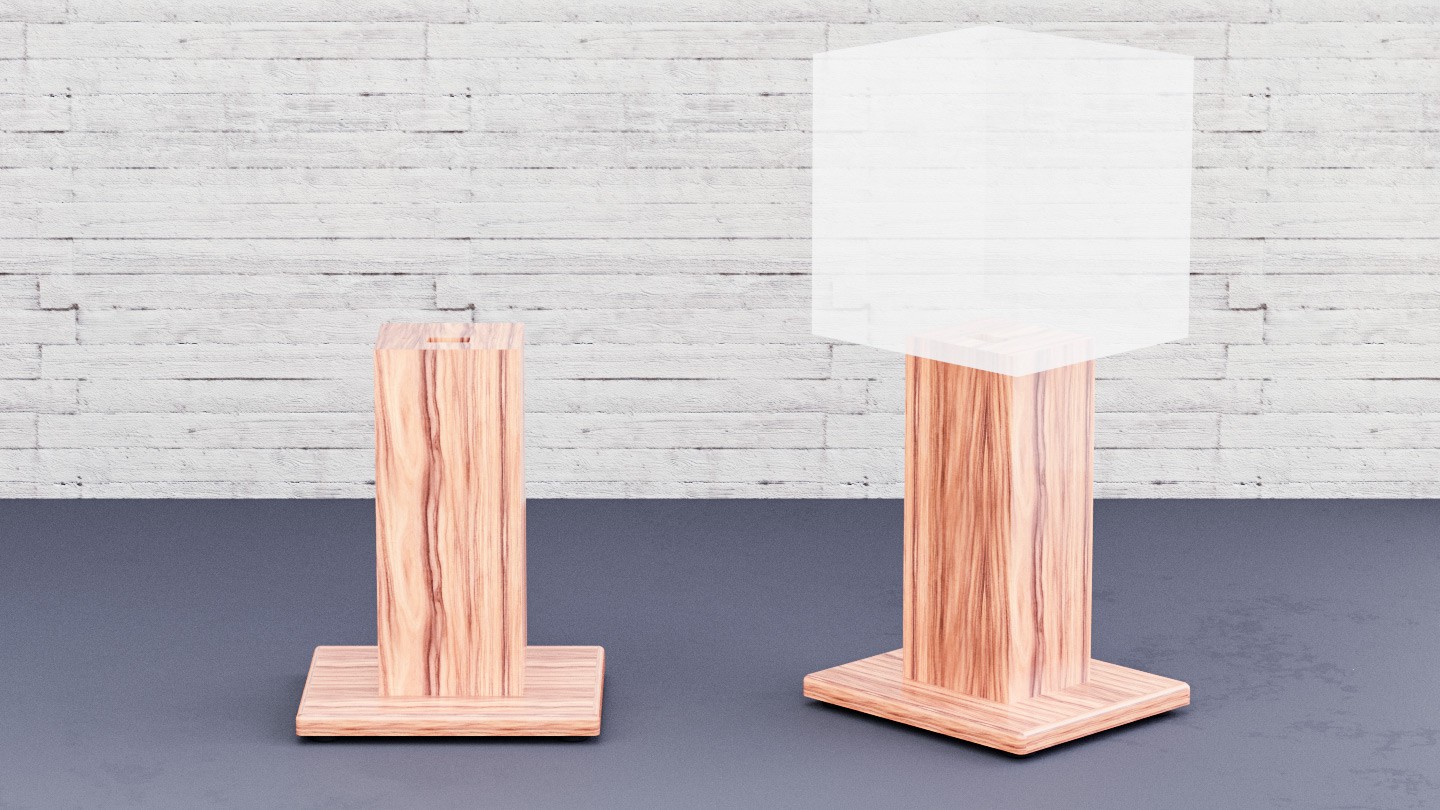

Pedestal

  • Integrated cable duct in the pedestal
  • Height (Top edge loudspeaker): approx. 1200 mm (47.2 in)
  • Base panel (W x D): 500 mm x 430 mm (19.7 in x 16.9 in)
  • Pedestal veneered

Brochure and Documentation

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
