musikelectronic geithain gmbh

Active loudspeaker

From a compact two-way monitor up to large loudspeaker-systems - we provide you with the best solutions for all kinds of professional use. The RL and MO series‘ studio-monitors are the result of consequent development that needed many years and pursued only one aim: the highest degree of precise sound without any coloration regardless of genres. Hearing and measuring are the basis of our work.

RL 801K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    122 dB / r = 1 m
  • Hearing distance:
    3 ... 6 m
  • Dimensions H x W x D:
    550 x 500 x 430 mm
  • Weight:
    48 kg

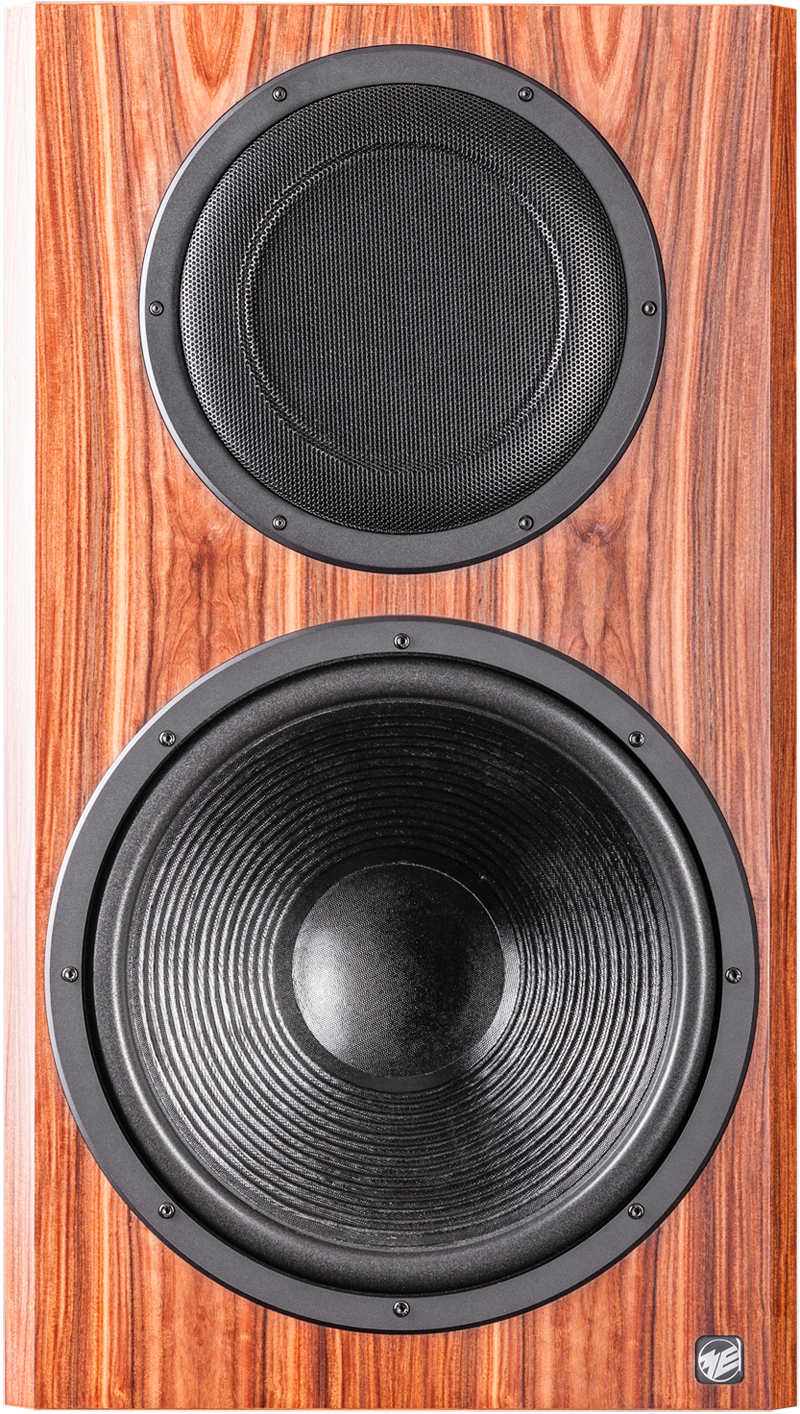

ML 811K1

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    118 ... 127 dB / r = 1 m
  • Hearing distance:
    3 ... 8 m
  • Dimensions H x W x D:
    810 x 460 x 400 mm
  • Weight:
    51 kg

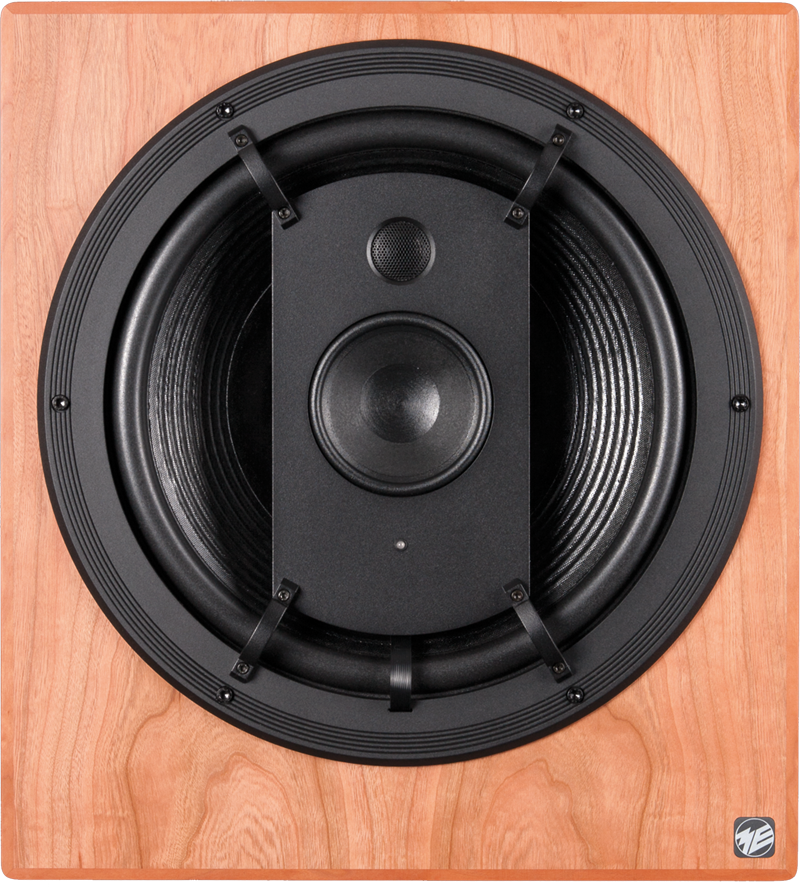

RL 901K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    116 ... 122 dB / r = 1 m
  • Hearing distance:
    2 ... 4 m
  • Dimensions H x W x D:
    550 x 500 x 430 mm
  • Weight:
    48 kg

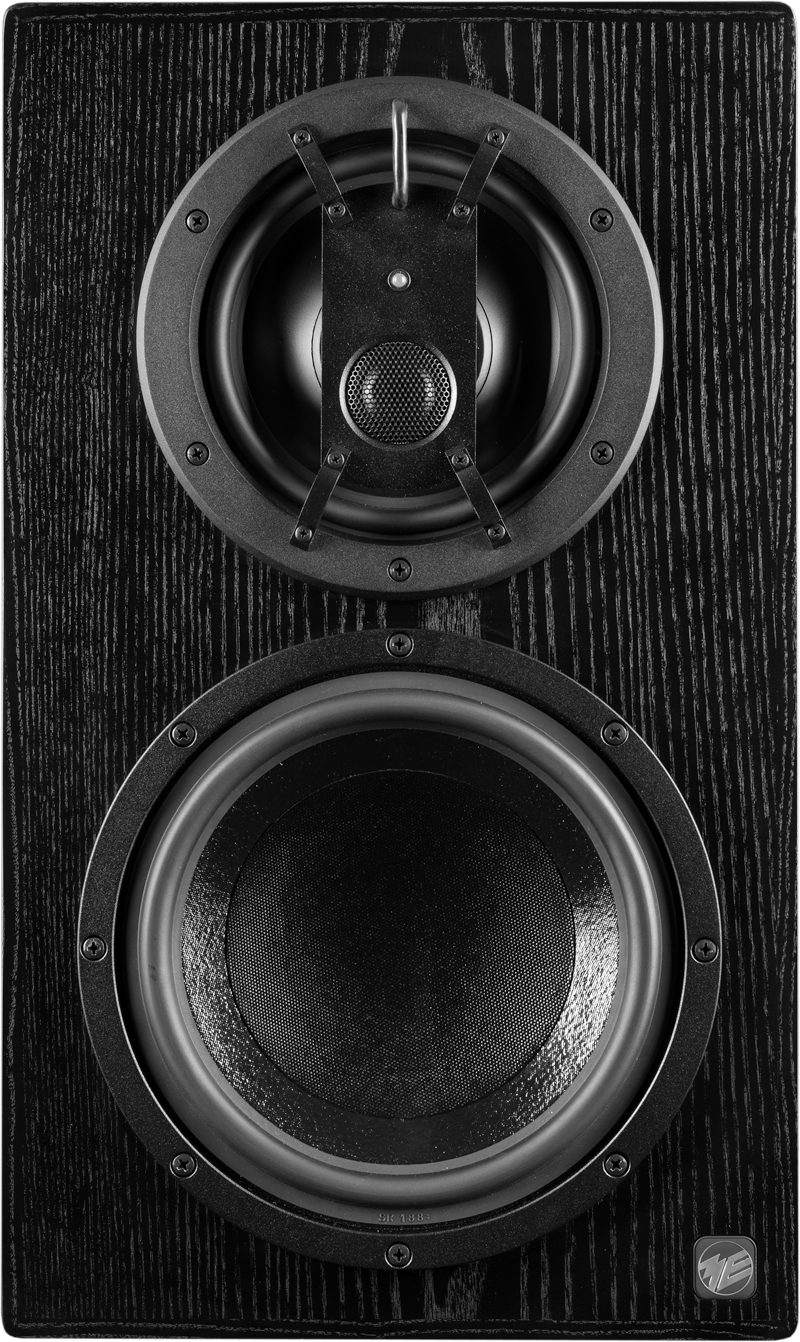

RL 903K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    110 ... 115 dB / r = 1 m
  • Hearing distance:
    1,5 ... 3 m
  • Dimensions H x W x D:
    480 x 285 x 293 mm
  • Weight:
    28 kg

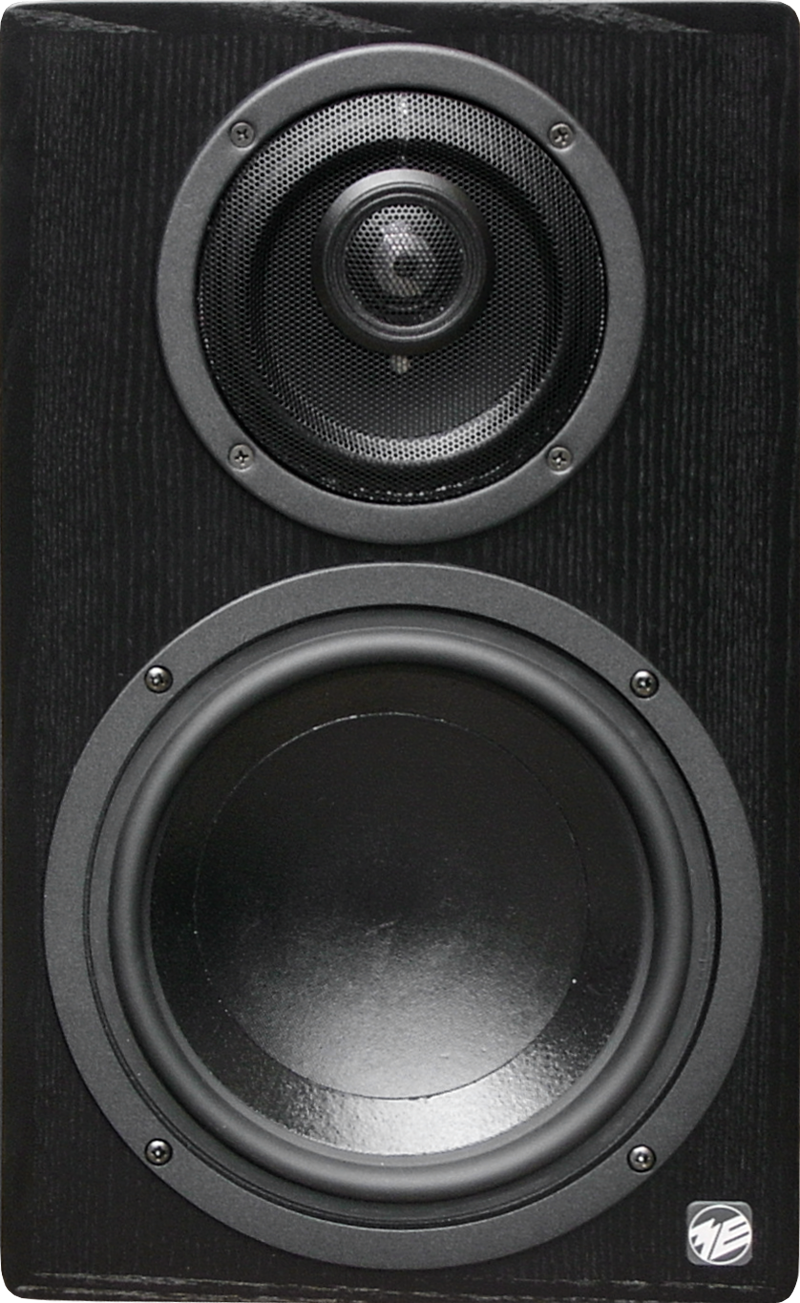

RL 903BK

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    110 ... 115 dB / r = 1 m
  • Hearing distance:
    1 ... 2.6 m
  • Dimensions H x W x D:
    415 x 254 x 275 mm
  • Weight:
    15 kg

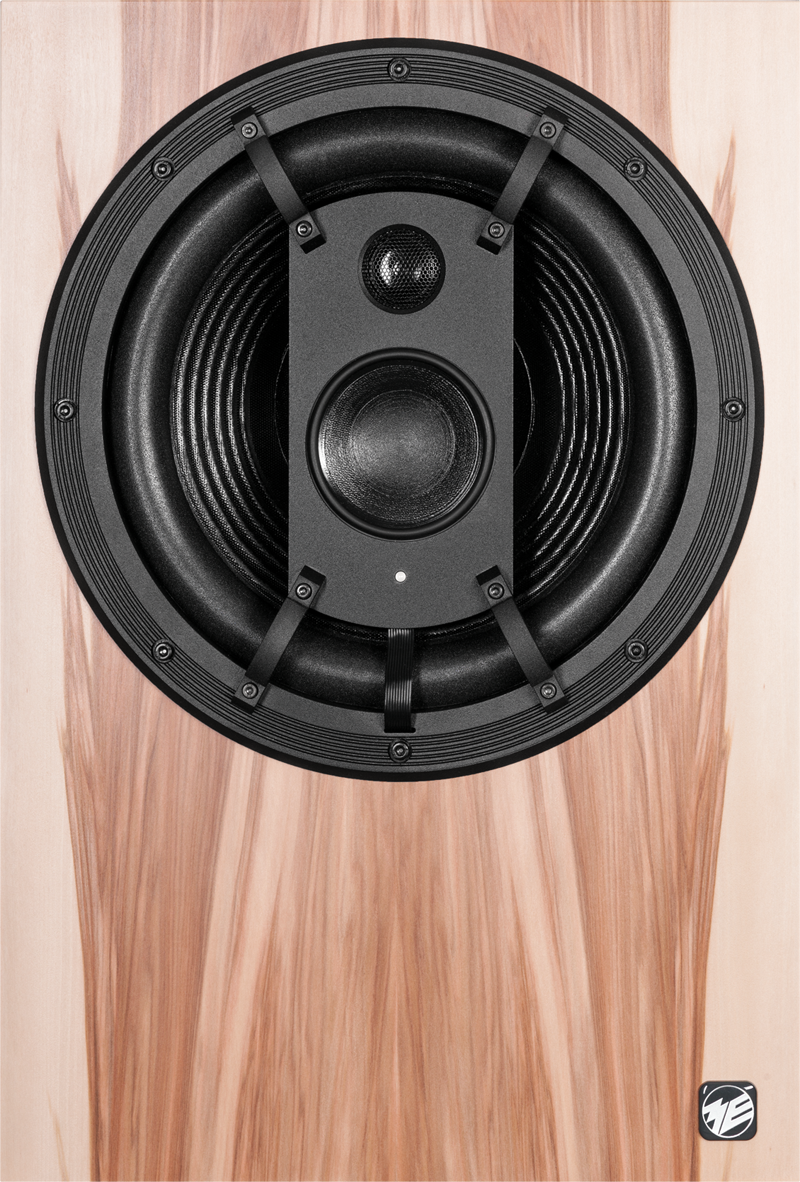

RL 921K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    115 ... 121 dB / r = 1 m
  • Hearing distance:
    2 ...3 m
  • Dimensions H x W x D:
    550 x 380 x 370 mm
  • Weight:
    39,5 kg

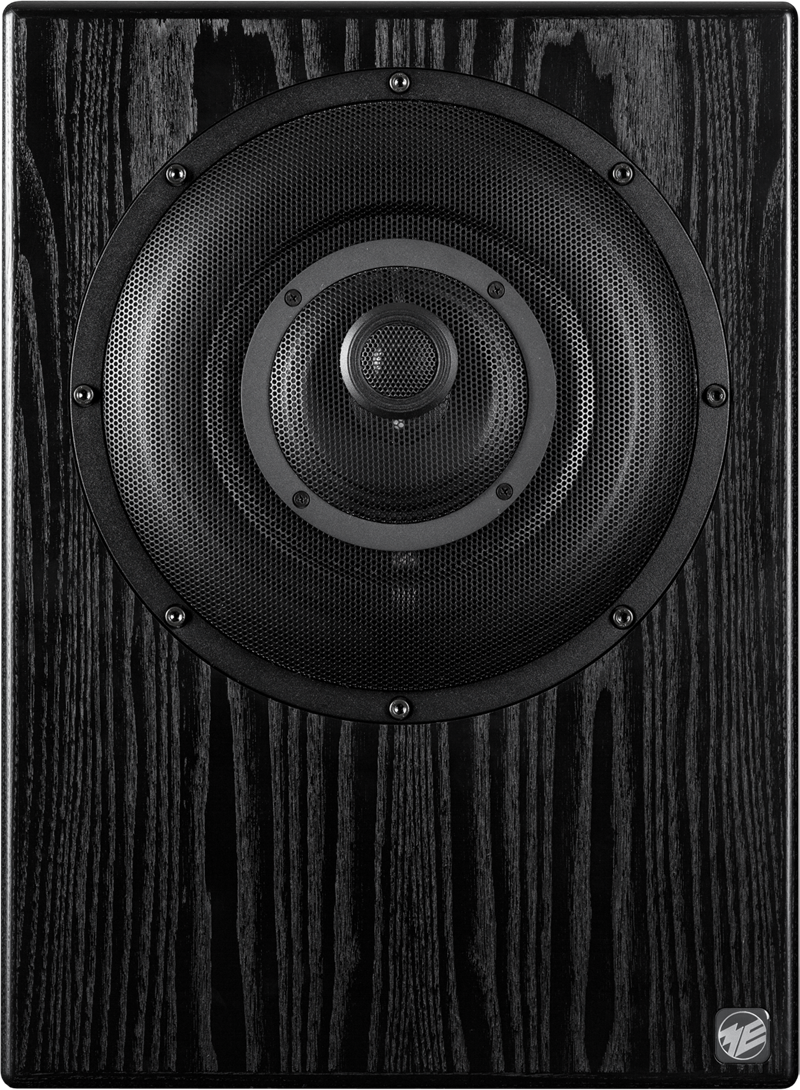

RL 922K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    115 ... 121 dB / r = 1 m
  • Hearing distance:
    2 ... 3 m
  • Dimensions H x W x D:
    550 x 400 x 370 mm
  • Weight:
    38 kg

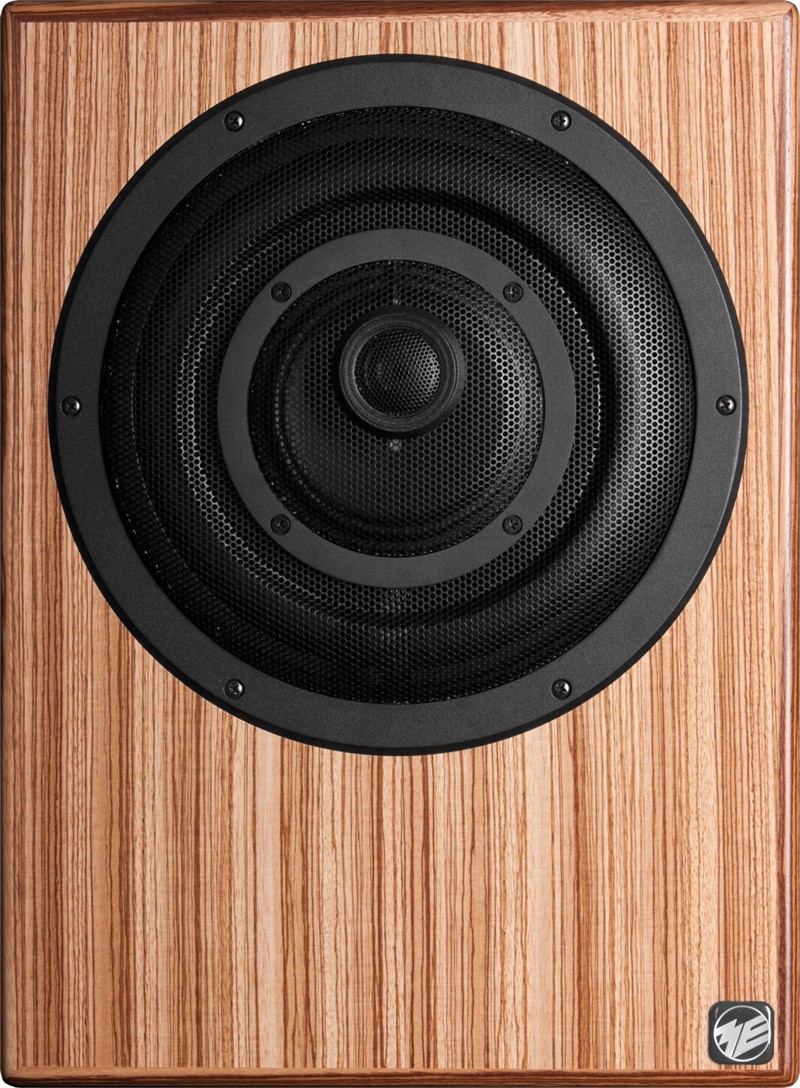

RL 933K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    112 ... 121 dB / r = 1 m
  • Hearing distance:
    2 ... 3 m
  • Dimensions H x W x D:
    477 x 350 x 310 mm
  • Weight:
    30 kg

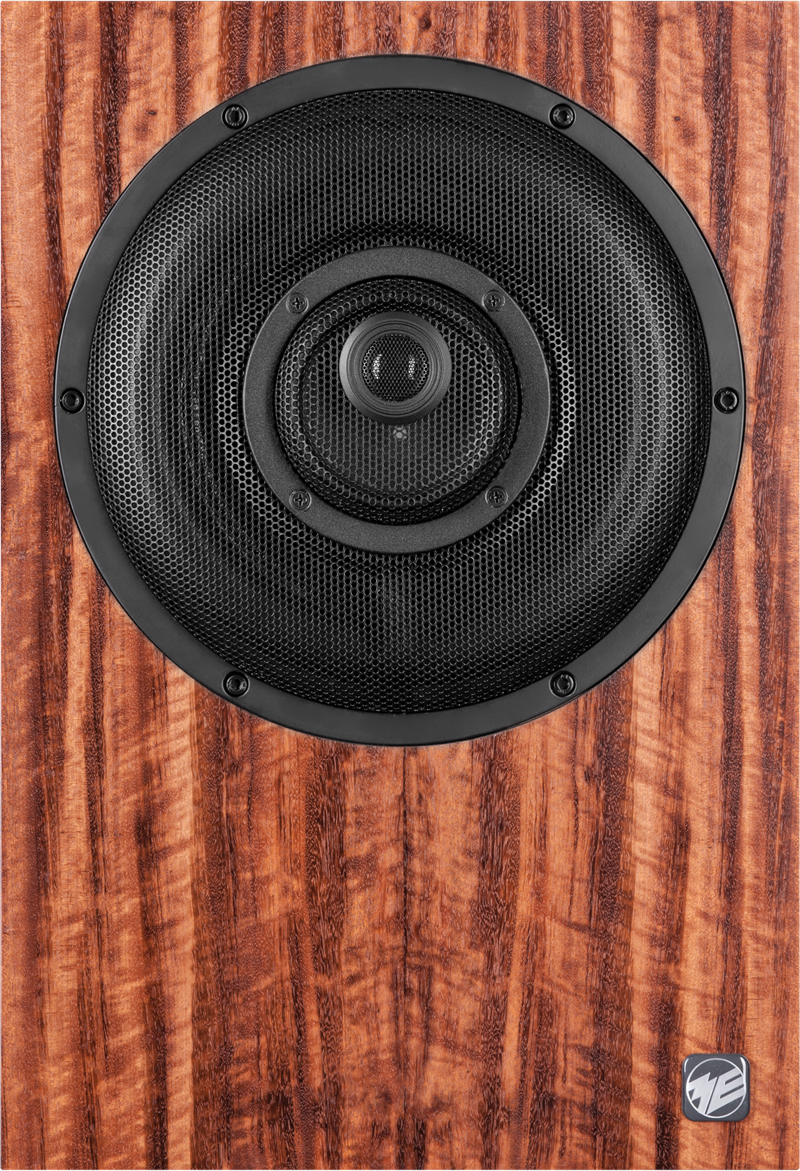

RL 934K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    112 ... 121 dB / r = 1 m
  • Hearing distance:
    1 ... 2.6 m
  • Dimensions H x W x D:
    475 x 325 x 330 mm
  • Weight:
    28,5 kg

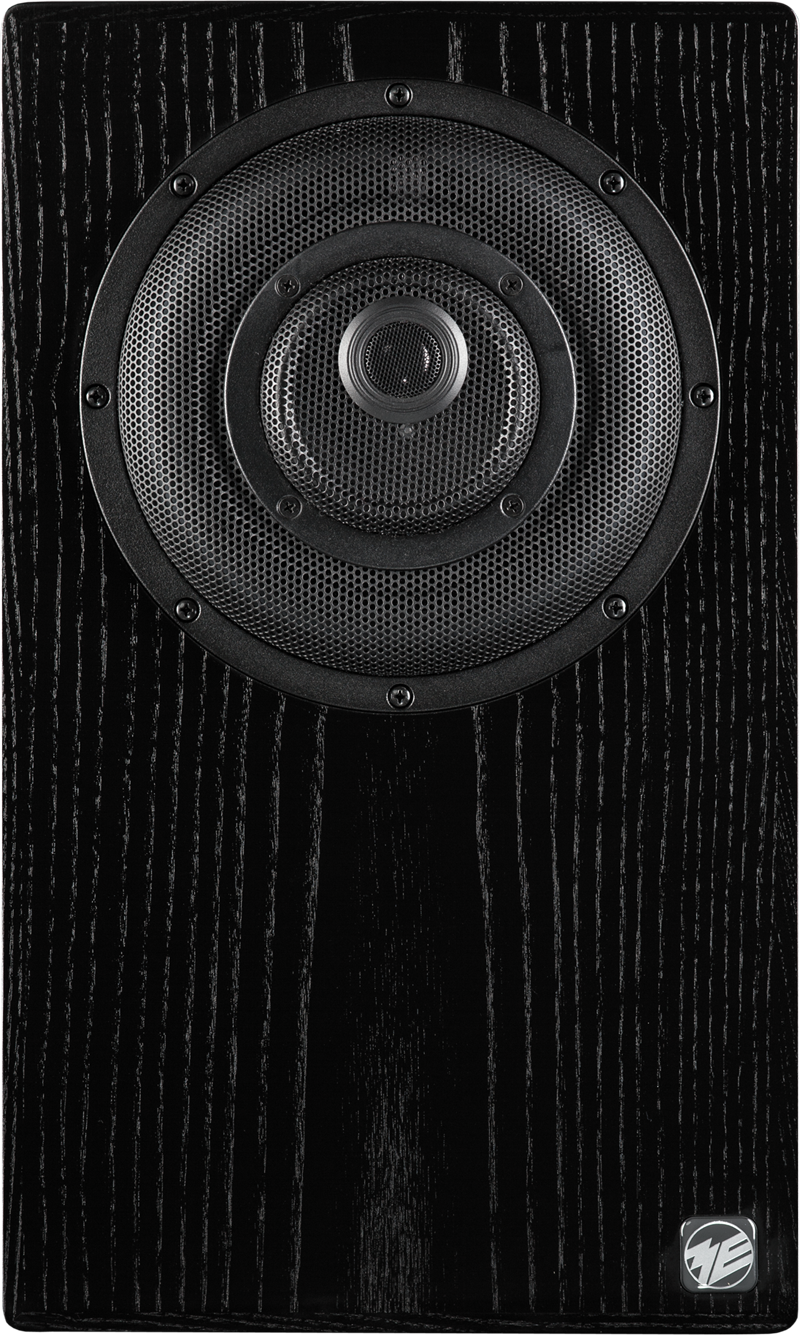

RL 944K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    110 ... 113 dB / r = 1 m
  • Hearing distance:
    1 ... 2,60 m
  • Dimensions H x W x D:
    481 x 285 x 330 mm
  • Weight:
    24 kg

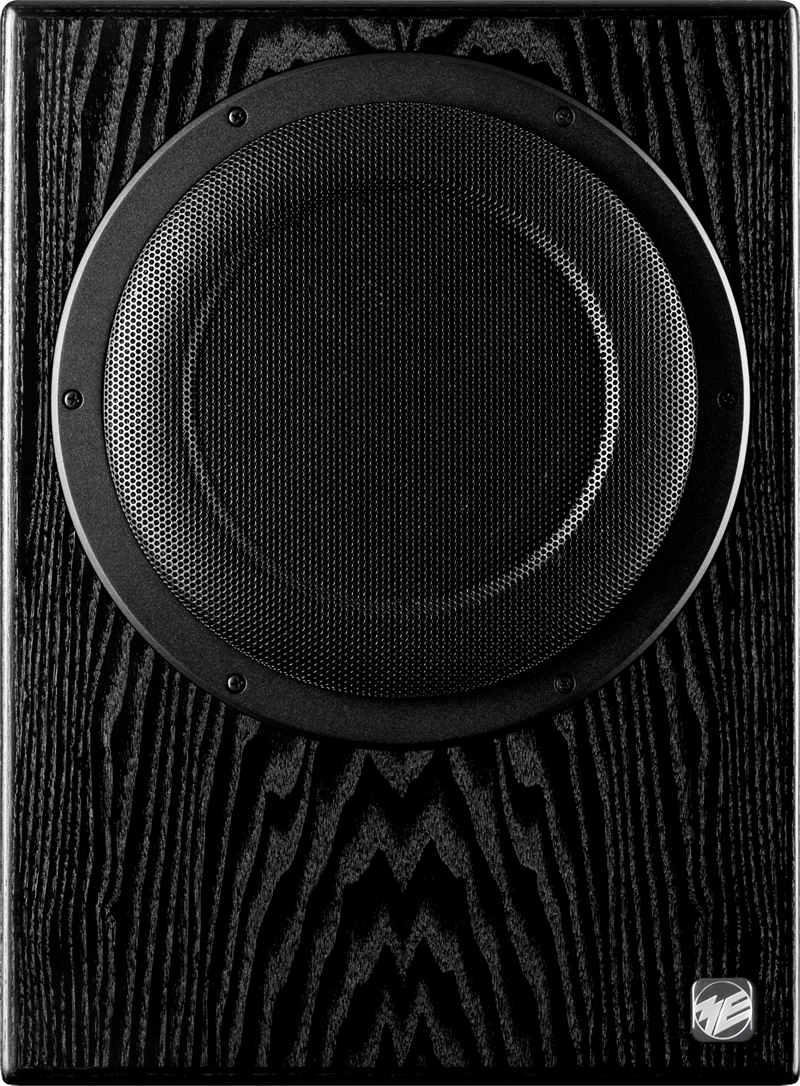

RL 930K

2-way-coaxial-loudspeaker with cardioid characteristic in bass range
  • Maximum SPL:
    113 ... 118 dB / r = 1 m
  • Hearing distance:
    2,50 ... 5 m
  • Dimensions H x W x D:
    477 x 350 x 310 mm
  • Weight:
    24,6 kg

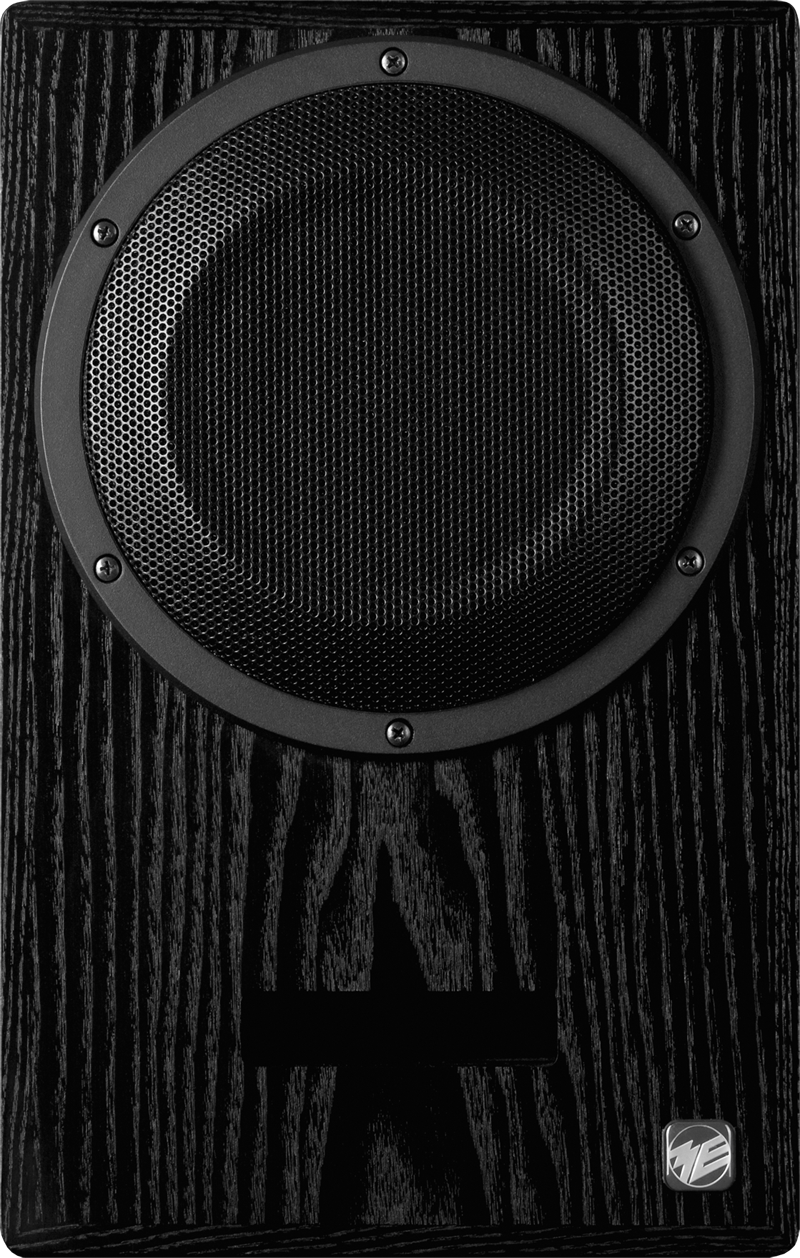

RL 941

2-way-coaxial-loudspeaker in vented box
  • Maximum SPL:
    110 ... 116 dB / r = 1 m
  • Hearing distance:
    2,50 ... 4 m
  • Dimensions H x W x D:
    398 x 254 x 345 mm
  • Weight:
    18,6 kg

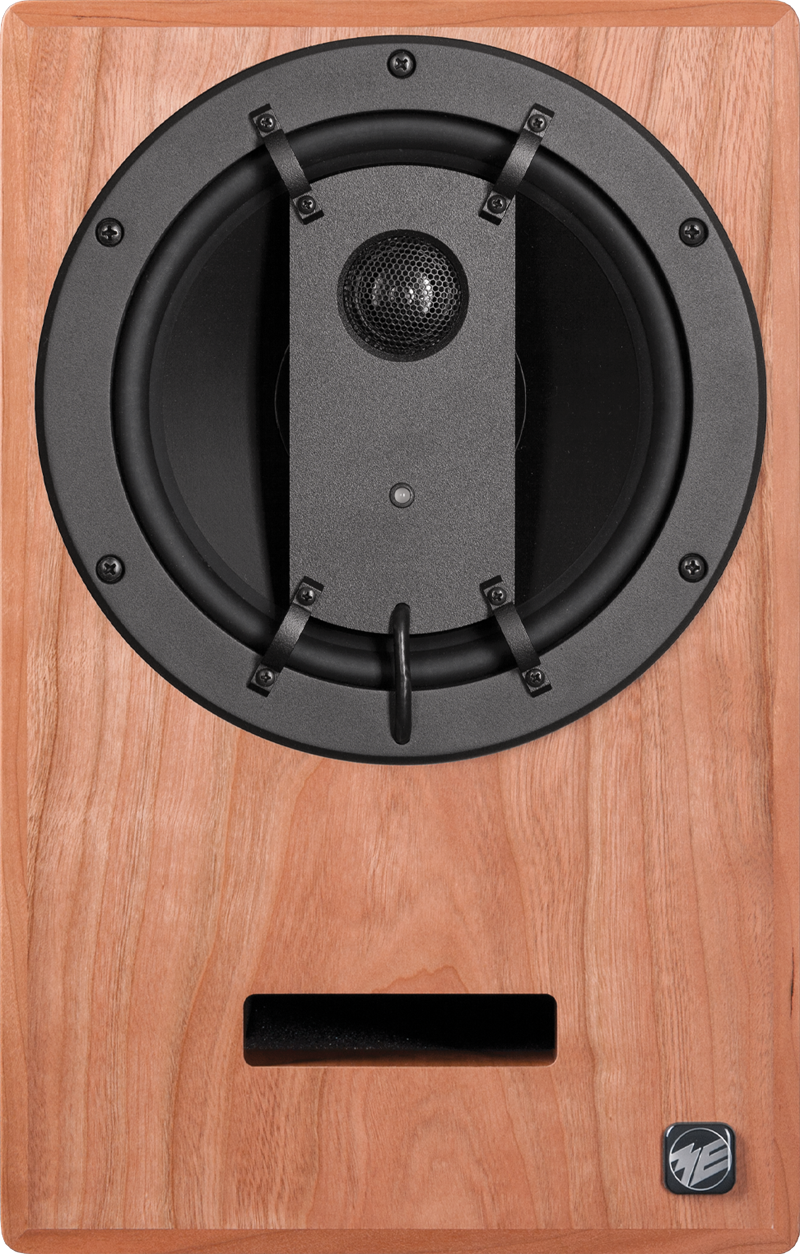

RL 940 / RL 940C

2-way-coaxial-loudspeaker in vented box
  • Maximum SPL:
    110 ... 114 dB / r = 1 m
  • Hearing distance:
    1,5 ... 3 m
  • Dimensions H x W x D:
    398 x 254 x 345 mm
  • Weight:
    18 kg

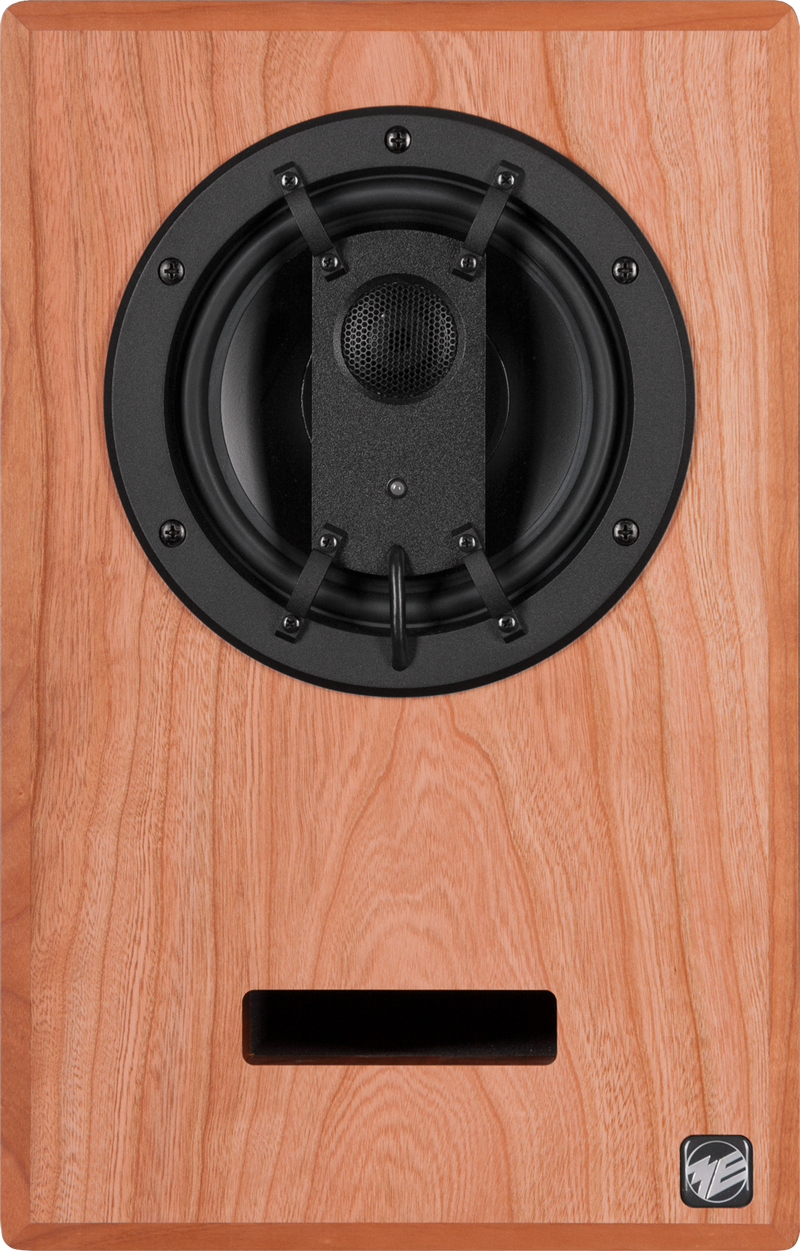

RL 904

2-way-coaxial-loudspeaker in vented box
  • Maximum SPL:
    106 dB / r = 1 m
  • Hearing distance:
    1,50 ... 3 m
  • Dimensions H x W x D:
    398 x 254 x 345 mm
  • Weight:
    16 kg

RL 906

2-way-coaxial-loudspeaker in vented box
  • Maximum SPL:
    104 dB / r = 1 m
  • Hearing distance:
    1 ... 2,60 m
  • Dimensions H x W x D:
    255 x 180 x 200 mm
  • Weight:
    5,5 kg

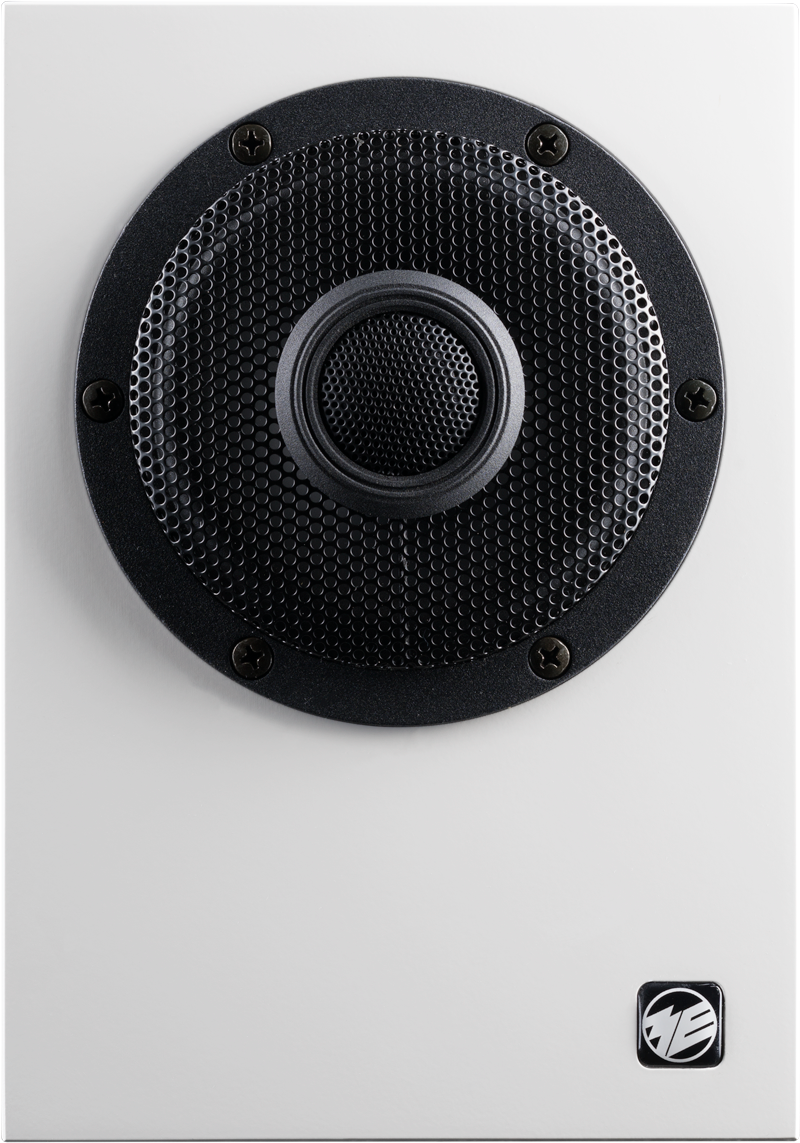

MO-1 MKII

2-way-coaxial-loudspeaker in enclosure box
  • Maximum SPL:
    103 ... 108 dB / r = 1 m
  • Hearing distance:
    0,60 ... 2 m
  • Dimensions H x W x D:
    214 x 147 x 192 mm
  • Weight:
    3,5 kg

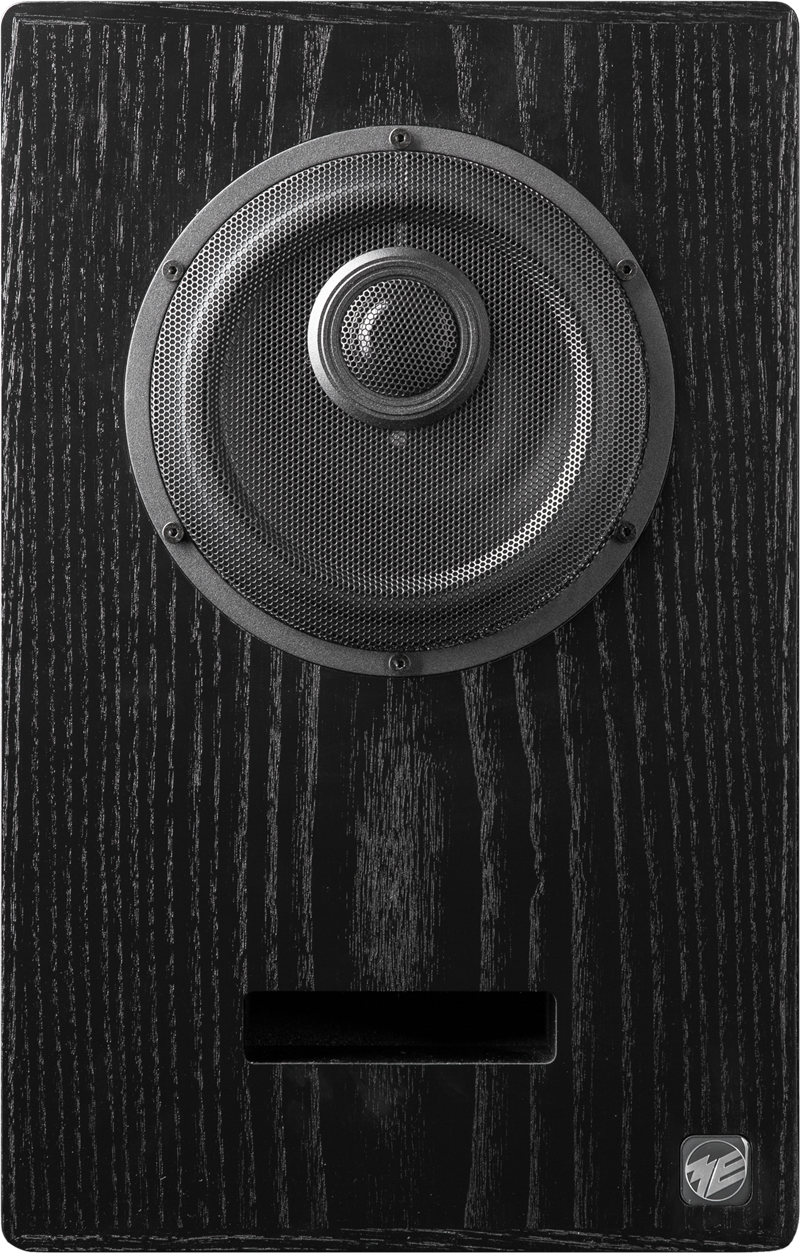

MO-2

2-way-coaxial-loudspeaker in vented box
  • Maximum SPL:
    108 ... 112 dB / r = 1 m
  • Hearing distance:
    1,50 ... 2,60 m
  • Dimensions H x W x D:
    398 x 254 x 245 mm
  • Weight:
    11 kg
