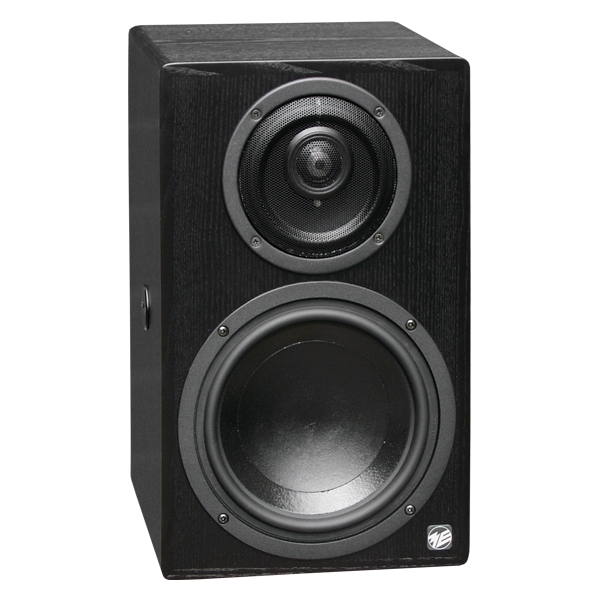

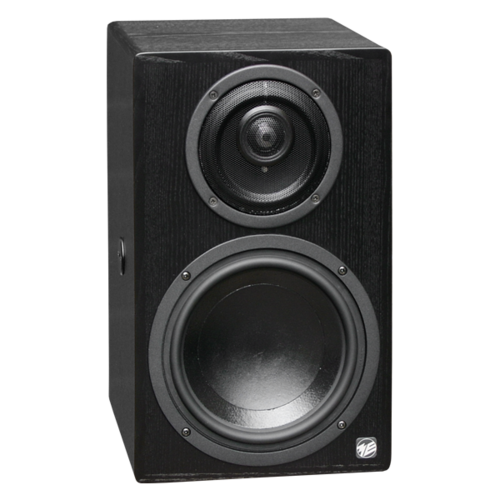

RL 903BK

The Loudspeaker of the type RL903BK is a main control room loudspeaker with cardioids irradiation characteristic within the range of 35 Hz to 250 Hz which can be applied universally in broadcast vans of medium and large size. By means of the cardioids irradiation characteristic reflections at the backside wall behind the loudspeaker are minimized. The coaxial mid- and high-frequency unit is combined with a highly efficient long deviation chassis. By construction of the loudspeaker in coaxial technology we can reach excellent localization behaviour and optimum imaging of phantom sources. Additionally, by means of various constructive methods the loudspeaker produces extreme low nonlinear distortions. With the special geometric arrangement of the mid- and high-frequency driver unit as well as with the relatively small asymmetric designed front the result gives excellent sound colour neutrality, i.e. sound coloration at a minimum level. In spite of compact dimensions of the box a lower frequency of 35 Hz could be reached.

The three-way power amplifier of the RL903BK with electronic crossover are contained in an external case. For service purposes it can be turned out during operation. The mid- and high-frequency driver unit can be protected by an electronic circuit which reduces the level by 20 dB if the maximum level is overridden. This status will be signalized by an intermittent shining LED on the front side.

Optionally, the mid- and high-frequency unit can be supplied revolved by 90 degrees, that way the speaker can be installed either in vertical or horizontal position. For matching the monitor to the room-acoustical situation within the listening room and its position, the frequency response can be corrected at higher and lower frequencies.

As extras various special stands and mounting supports are deliverable; corresponding mounting elements are integrated to the loudspeaker case.
