RL 801K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range

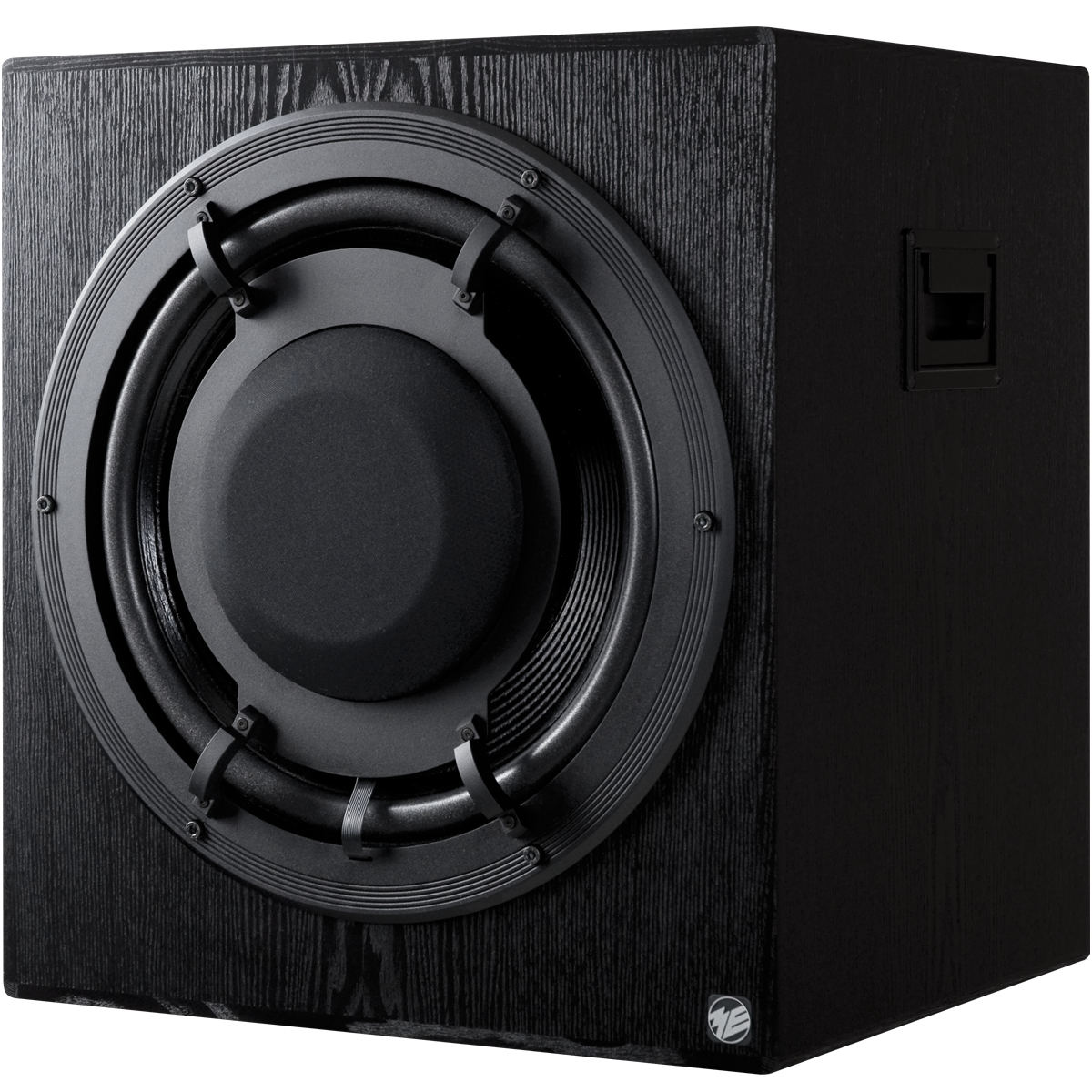

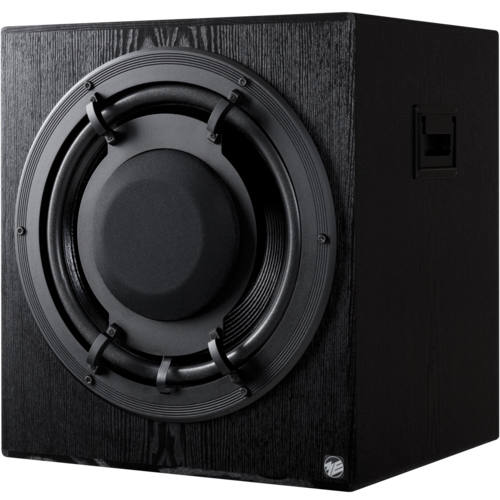

The RL 801K is an all-round main control studio monitor for large audio, video and film studios. Its 3-way concept consists of a 15-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes.

RL 801K

The RL 801K is an all-round main control studio monitor for large audio, video and film studios. Its 3-way concept consists of a 15-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes. The coaxial arrangement of the loudspeaker systems ensures a highly natural and homogenous punctiform image of the sound source. The radiation characteristics of the RL 801K have been optimised for listening distances between three and six metres, allowing excellent depth arrangement and coloration neutrality. Even at high reproducing levels, the loudspeaker renders an excellent performance with extraordinarily low non-linear distortions. Our reliable K Technology (cardioid radiation characteristics in the bass range) minimises rearward-directed room reflections, making it easy to position the RL 801K in the listening room.

The three-channel power amplifier that features one 1000 W and two 500 W PWM amplifier modules and an electronic crossover is integrated into the rear wall of the cabinet and can be swung out for service purposes. An intermittent LED signalises overmodulation. If the maximum level is exceeded, the output level will be attenuated by 20 dB in order to protect the components from overload. For adaptation of the frequency response to the acoustic conditions of reproduction room and loudspeaker set-up position, low-frequency room compensation can be achieved within two variably adjustable frequency bands.

A variety of special stands and racks are available as accessories; according fixing elements are integrated into the loudspeaker cabinet.

General

active 3-way high-performance-loudspeaker for listening distances between 3 and 6 m

Maximum SPL

to IEC 268-1
≥ 117 dB
Programme material
122 dB peak / r = 1 m (3.3 ft)

Bandwidth

25 Hz ... 22 kHz - 6 dB

Calibration:
Acoustic output level / PE = - 14 dBu


90 dB / r = 1 m (3.3 ft)

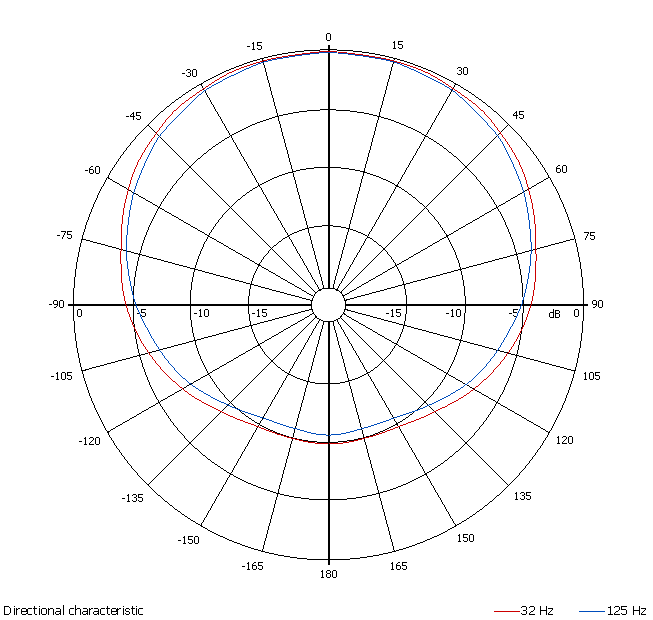

Directivity index
from 100 Hz ... 10 kHz


increasing from 4 to 10 dB

Inherent noise sound level

≤ 10 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 100 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 45 dB

Nominal Input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic Crossover frequencies

550 Hz and 2.2 kHz

Output power PWM-amplifier

LF
Max. 1000 Watt / 4 Ohm
MF
Max. 500 Watt / 4 Ohm
HF
Max. 500 Watt / 4 Ohm

Power requirements

90 ... 132 V, 55 ... 65 Hz
190 ... 265 V, 45 ... 55 Hz

Power consumption

30 VA at standby
max. 1000 VA at full load

Mains Connection

IEC power connector with HF-filter

Operation and Clipping indicator

LED on front side

Input Connector

XLR 3F (programme input)

Output Connector

XLR 3M (bass expansion)

Loudspeaker systems

Woofer
1x 400 mm (15") cone
Mid-range unit
1x 160 mm (6") cone
Tweeter
3x 25 mm (1") dome

Dimensions (H x W x D)

550 x 500 x 430 mm (21.7 x 19.5 x 16.7 in)

Weight

48 kg (105.6 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
Humidity
45 ... 75 %

Design of the Cabinet

MDF-wood in ash black veneered; optional different veneers or colors
with holding device; optional without holding device
with handles; optional without handles

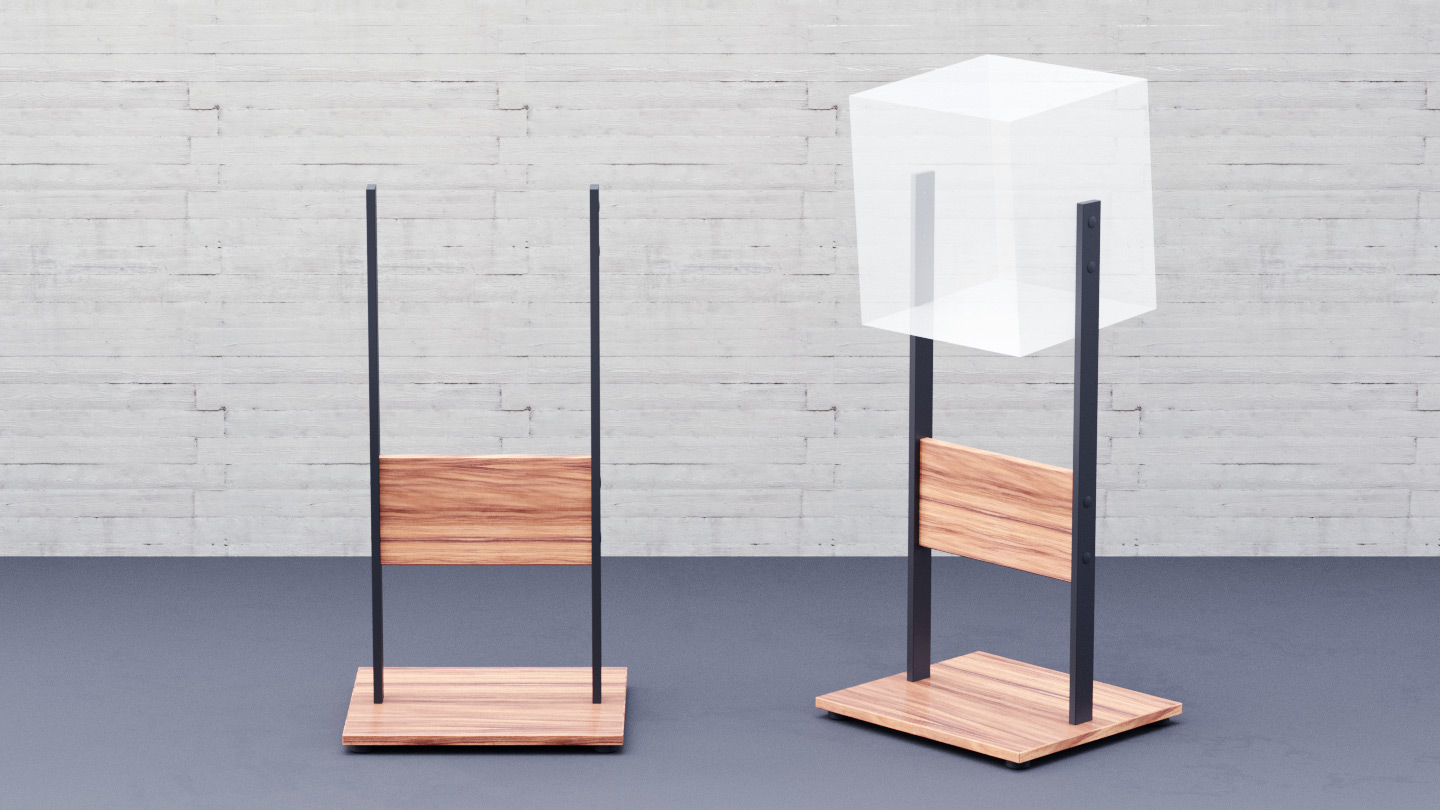

Floor bracket stand RL801K

  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1330 mm (52.4 in), 1455 mm (57.3 in), 1595 mm (62.8 in) und 1795 mm (70.7 in)
  • Base panel (W x D): 620 mm x 550 mm (24.4 in x 21.7 in)
  • Base panel and stabilisation panel veneered
  • Racks black powder-coated

Pedestal RL801K

  • Integrated cable duct in the pedestal
  • Height (Top edge loudspeaker): approx. 1200 mm (47.2 in)
  • Base panel (W x D): 500 mm x 430 mm (19.7 in x 16.9 in)
  • Pedestal veneered

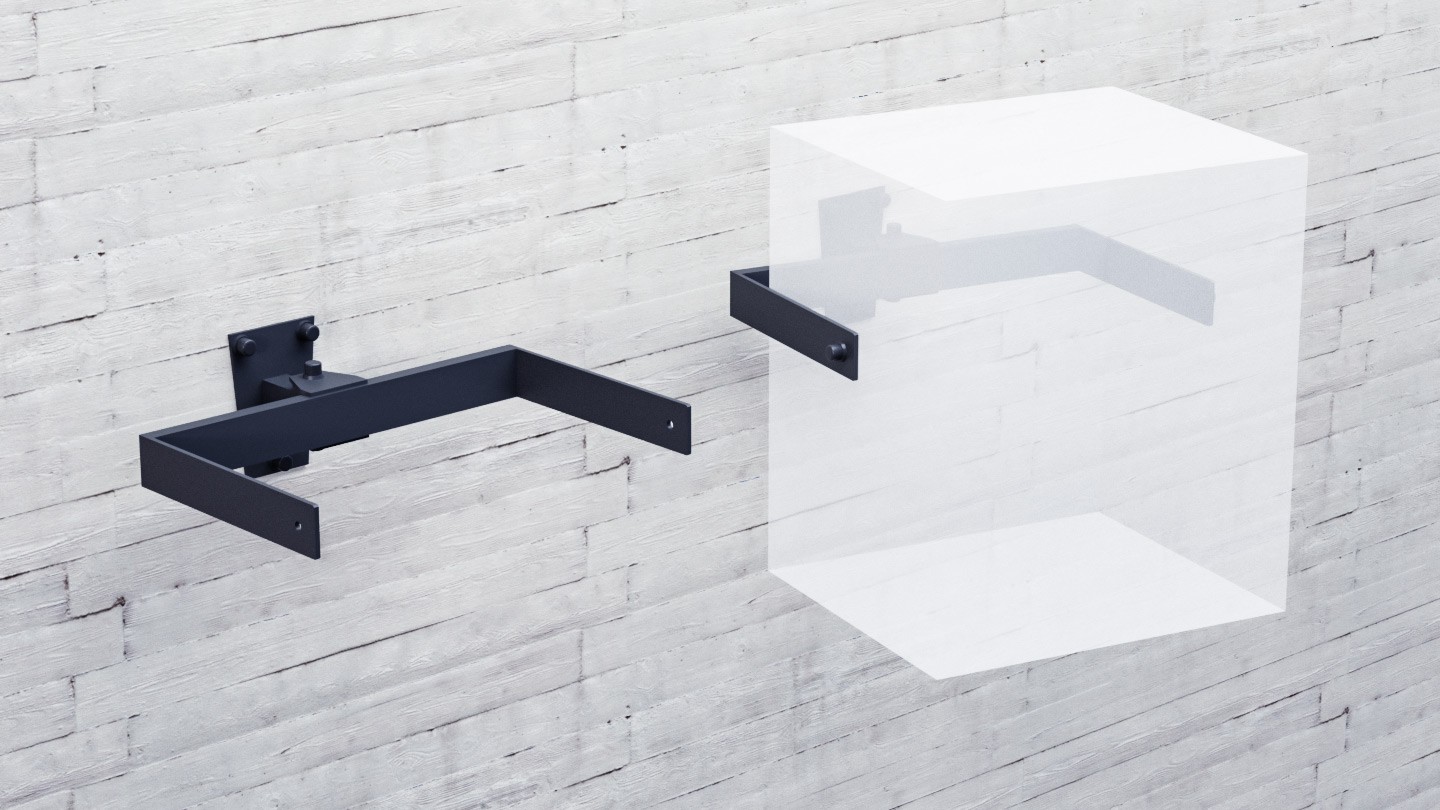

Wall bracket RL801K

  • 18° tilting und 25° rotable
  • Wall bracket black powder-coated

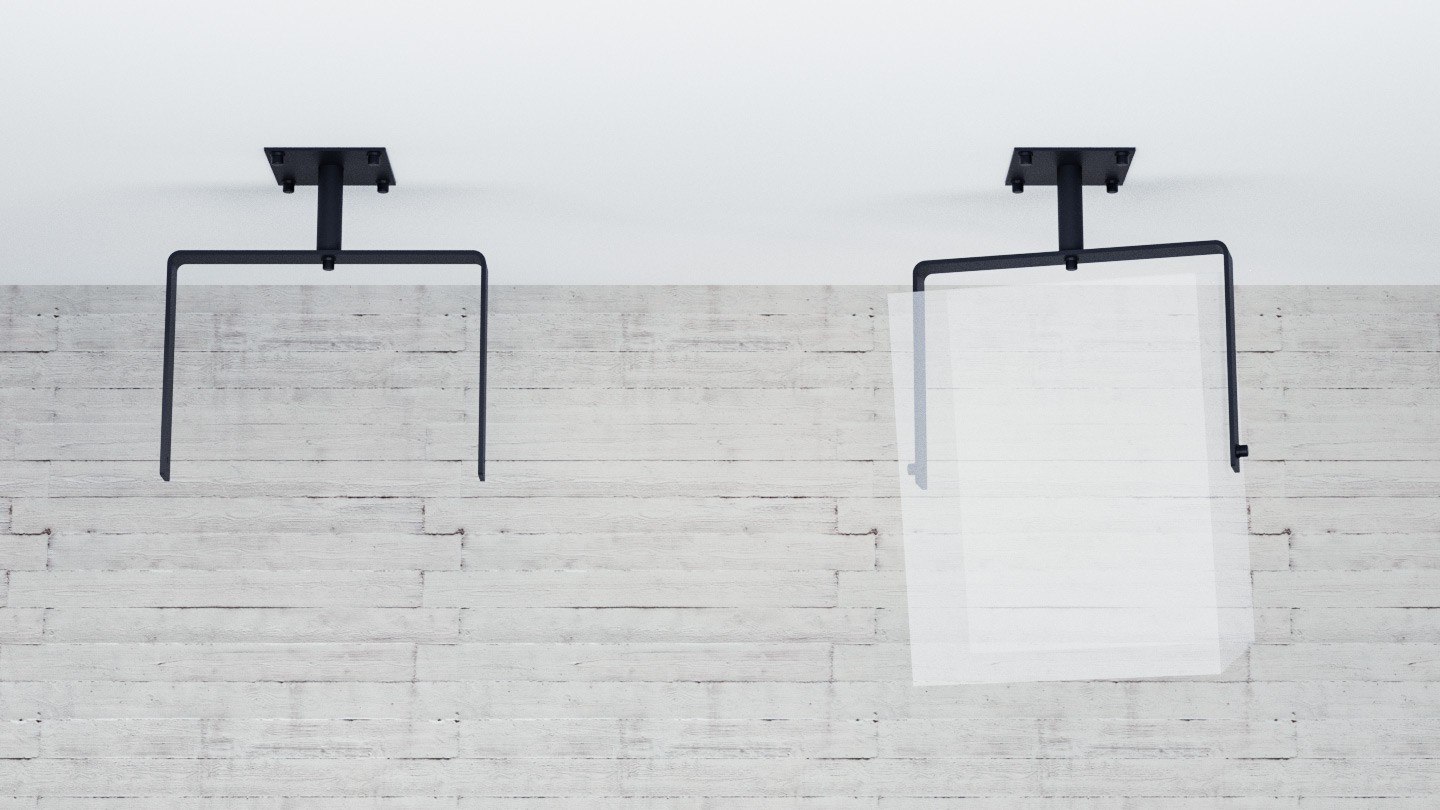

Ceiling bracket RL801K

  • Loudspeaker rotable mounted
  • Standard height between adapter plate and bracket: 300 mm
  • other length available
  • Ceiling bracket black powder-coated

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
