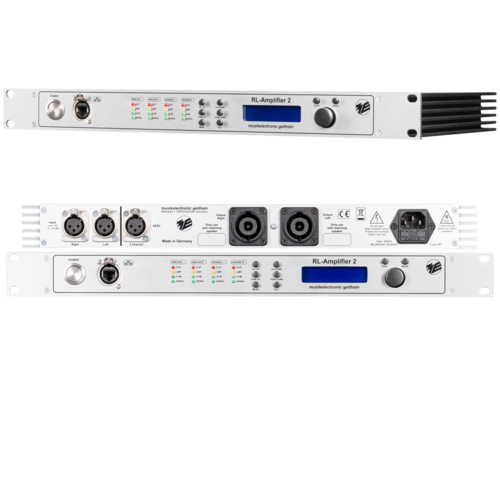

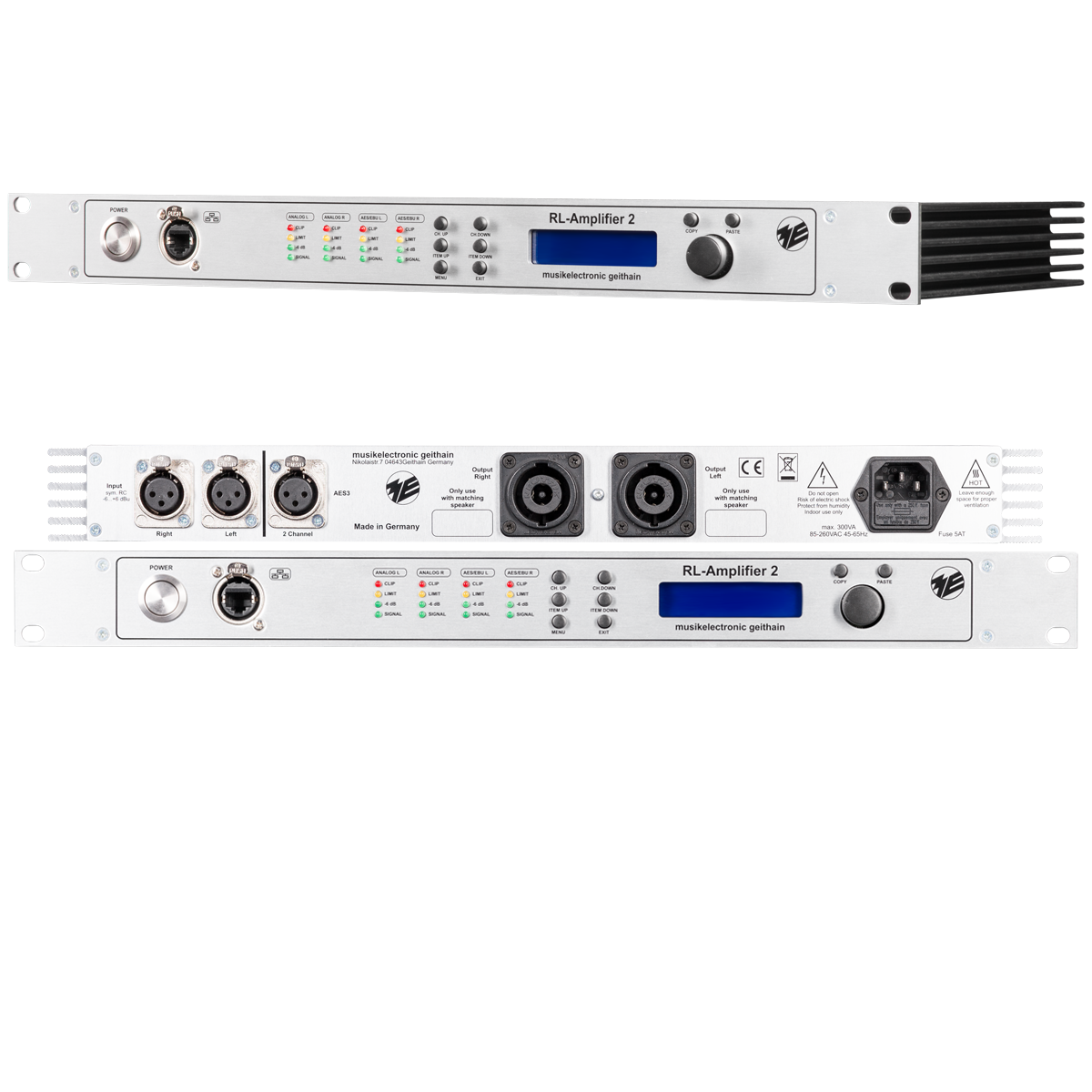

RL-Amplifier-2

Two 3 way rack amplifier

The RL  Amplifier  2 is a device especially designed as a separate 19-inch rack amplifier for 3 channel studio monitors from Musikelectronic Geithain GmbH.

RL-Amplifier-2

The RL  Amplifier  2 is a device especially designed as a separate 19-inch rack amplifier for 3 channel studio monitors from Musikelectronic Geithain GmbH. The device has PWM power amplifiers to allow operation with convection cooling in a compact 19-inch housing. It offers technical protective measures to ensure safe operation of the attached loudspeaker. It is designed for users searching for a device with minimum space requirements. The digital signal processor allows a flexible adjustment of the frequency response to the acoustical environment. Integration into digital production work chains is easily possible due to the AES/EBU input.

nominal input level

+ 6 dBu

maximum input level

+ 22 dBu

output power limited to

LF
160 W
MF
80 W
HF
80 W

inherent noise sound level with attached loudspeaker

P < 10 dB(A) / r = 1 m (3.3 ft)

status indication at amplifier

display blue

level indicator

LED chain at amplifier

operating voltage

85 - 265 V 50 / 60 Hz

power consumption

max. 400 VA / max. 4 A

mains connector

IEC connector

protection class

protection class 1

input connectors

analogue
2x XLR3-F
digital
XLR3-F AES/EBU

output connectors

2x Neutrik Speakon NL8 MPR

dimensions (w x d x h)

44.5 cm (faceplate 48.5 cm) x 27 cm x 4.5 cm (1 U)
17.5 in (faceplate 19.1 in) x 10.6 in x 1.8 in (1 RU)

weight

4.2 kg (9.3 lbs)

environmental specifications

operating temperature range
+ 15 °C ... + 35 °C
storage temperature range
- 25 °C ... + 45 °C
humidity
45 % ... 75 %

EMV conformity

EN55103-1 Emission Class A
EN55103-2 Immunity

additional accessories (optional)

NL8 Speakon connection cable between amplifier and loudspeaker
