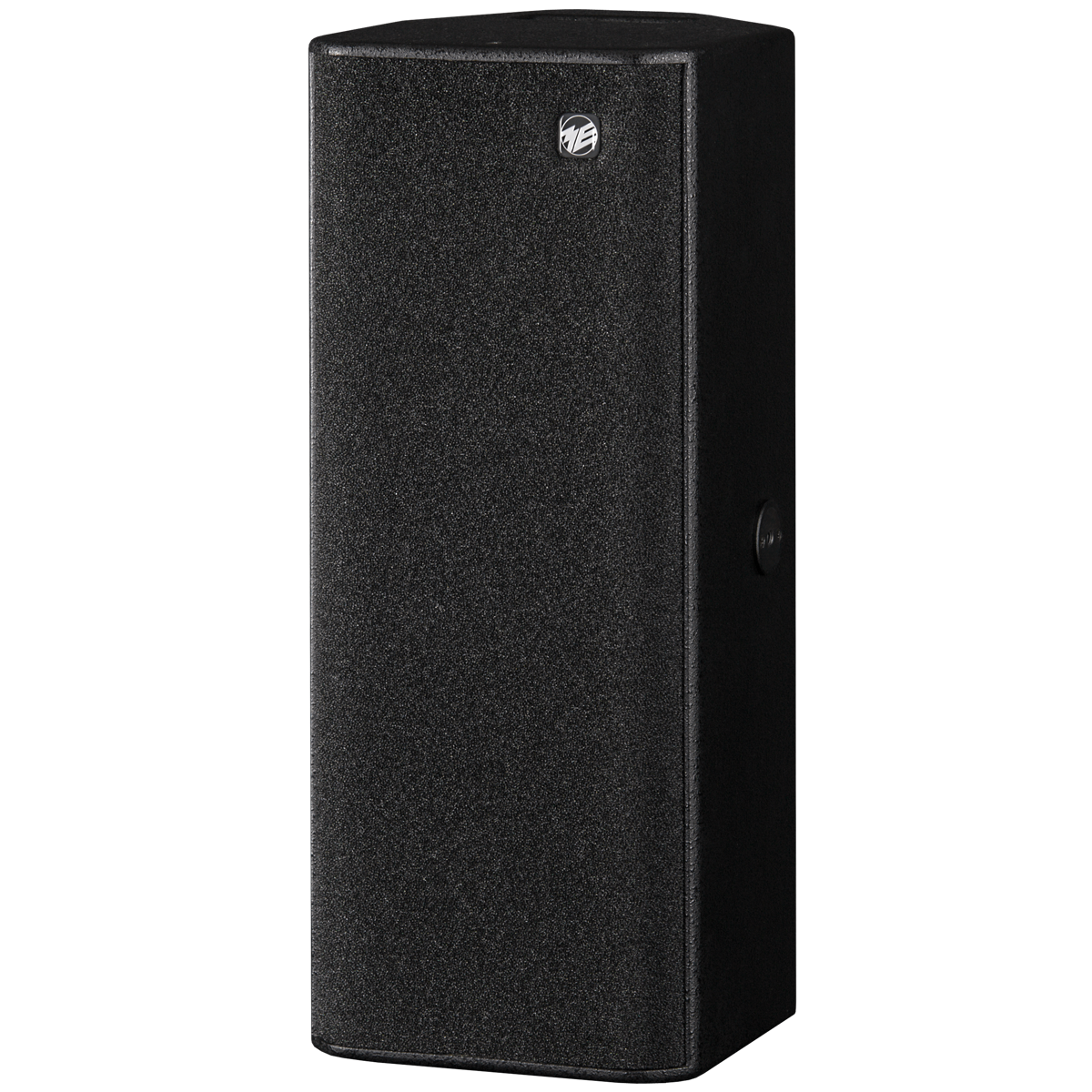

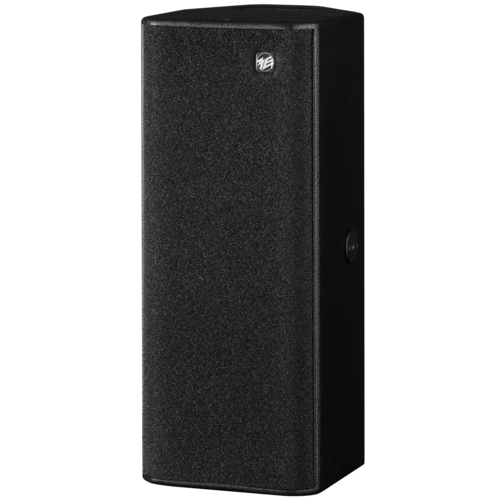

TS33 / TS33K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

TS33 / TS33K

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

The two-way sound reinforcement systems TS33 and TS33K feature a compact cabinet and high dynamics. As an all-round system they are useful for speech and music reproduction in middle sized auditoria. In addition they remain optically discrete because of their small dimensions. During the development the high frequency sound transmission was optimised for smallest possible colouration.

The components include two 6.5-inch cone woofers and one 1-inch compression driver. Both are effectively secured from destruction by an internal protective circuit. The bass reflex version TS33 reaches a lower cut-off frequency of 90 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

TS33
vented cabinet
TS33K
cardioid directivity in low frequencies

maximum SPL

122 dB peak / r = 1 m (3.3 ft)

frequency response

TS33
90 Hz ... 18 kHz -6 dB
TS33K
150 Hz ... 18 kHz -6 dB

sensitivity
messured at 1 W


95 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

80° x 50° (h x v)

maximum input power

500 watt

nominal input power

250 watt

nominal impedance

8 ohm
optional 100 V (100 / 200 / 400 ohm switchable)

Crossover frequency

2.5 kHz

directivity index
from 100 Hz ... 10 kHz

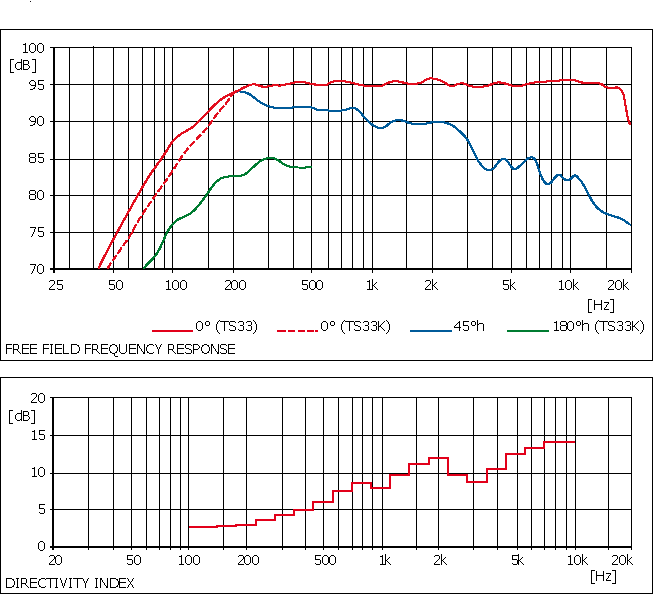

see diagram

input connector

2x Speakon NL4 (parallel)
optional 2x XLR4 (at 100 V)

transducers

LF
2x 6.5" cone
HF
1x 1" compression driver

overload protection

self-resetting

mechanical dimensions w x h x d

210 x 510 x 252 mm (8.27 x 20.08 x 9.92 inch)

weight

without 100 V transformer (standard)
13 kg (28.7 lbs)
with 100 V transformer (optional)
13.9 kg (30.6 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements

Brochure and operation manual
