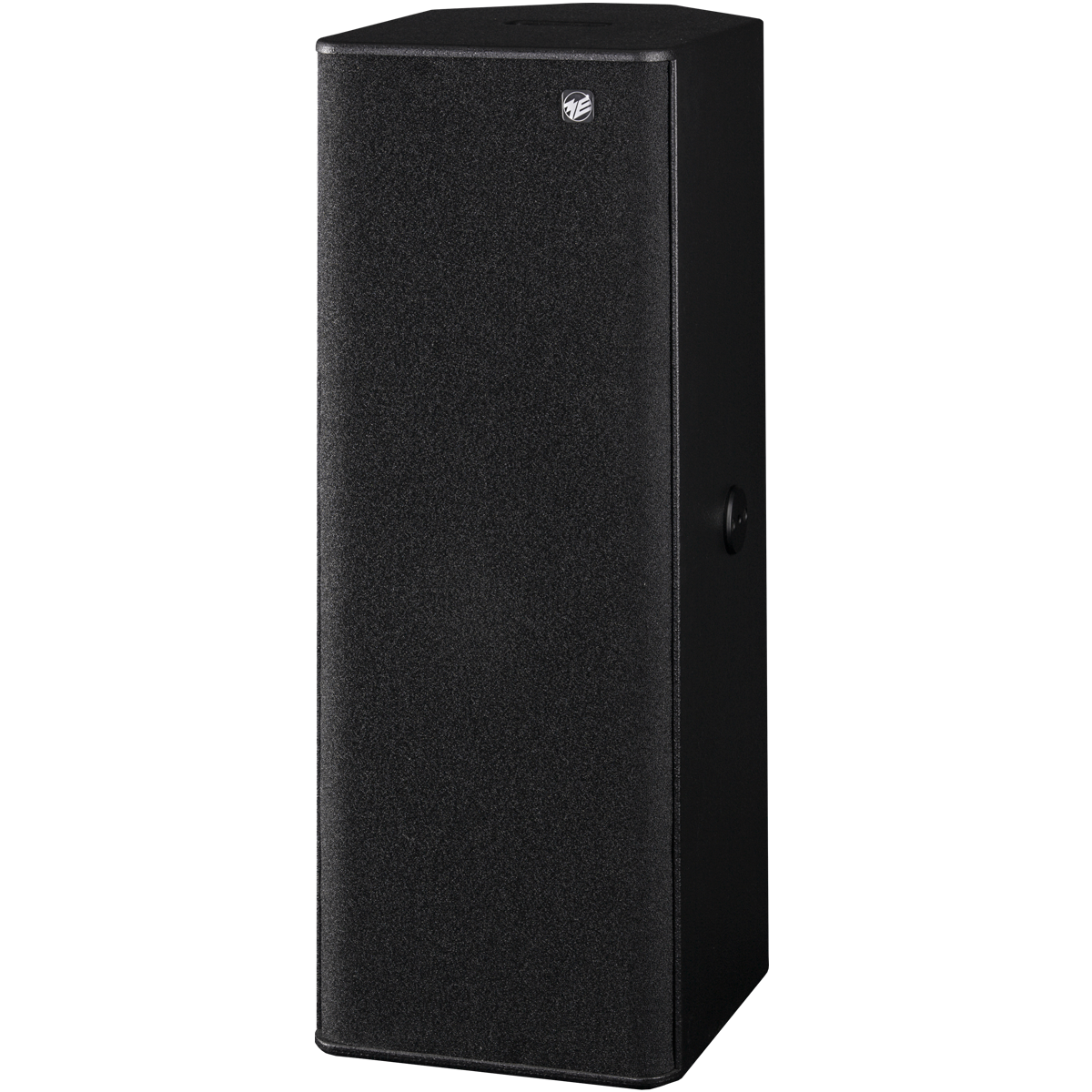

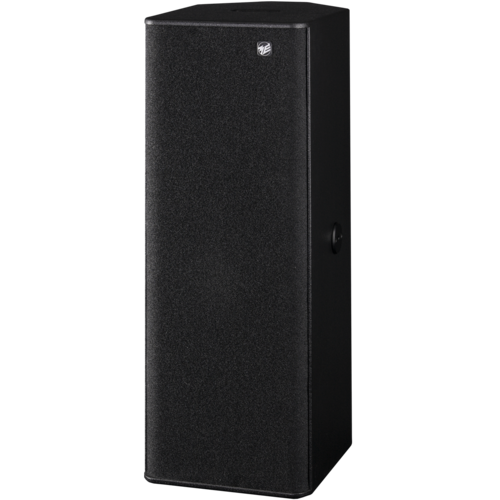

TS37SP / TS37KSP

Active inline loudspeaker in vented box or with cardioid radiation characteristic

The active two-way reinforcement systems TS37SP and TS37KSP feature linearity and high dynamics. As an all-round system they are useful for speech and music reproduction in middle and large sized auditoria and are the right decision when systems with high levels are needed.

TS37SP / TS37KSP

The active two-way reinforcement systems TS37SP and TS37KSP feature linearity and high dynamics. As an all-round system they are useful for speech and music reproduction in middle and large sized auditoria and are the right decision when systems with high levels are needed. The active concept allows flexible adjustments to acoustical conditions and guarantees a perfect combination of speakers and amplifiers. Thanks to pre-programmed presets a combination of our active subwoofers and speakers saves the time to configure a loudspeaker management system and immediately offers a perfectly adjusted system.

The components include two 10-inch cone woofers and one 1,4-inch compression driver. Both are effectively secured from destruction by an internal limiter. During development the high frequency sound transmission was optimised for smallest possible colouration. The bass reflex version TS37SP reaches a lower cut-off frequency of 65 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave. The waveguide of the horn driver is available in two opening angles and is also mountable rotated through 90°. So the speaker becomes flexibly usable and is as well variable regarding the mounting position.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

TS37SP
cardioid directivity in low frequencies
TS37KSP
vented cabinet

maximum SPL

129 dB peak / r = 1 m (3.3 ft)

frequency response

TS37SP
100 Hz ... 20 kHz -6 dB
TS37KSP
65 Hz ... 20 kHz -6 dB

coverage angle f > 2 kHz

90° x 60° (h x v)
60° x 40° (h x v)

transducers

LF
2x 10" cone
HF
1x 1.4" compression driver

calibration
acoustic output level PE = -14 dBu


99 dB SPL / r = 1 m (3.3 ft)

mains voltage

85 ... 260 V

input power

max. 800 VA

mains connectors

1x Powercon
1x Powercon loop

amplifier type

2-channel PWM amplifier with temperature controlled fan

nominal output power

2x 300 W

maximum output power

2x 450 W

noise level

9 dB (A) / r = 1 m (3.3 ft)

fan noise level

22 dB (A) / r = 1 m (3.3 ft)

input

1x XLR analogue

input level

-6 ... +6 dBu

output

1x XLR analogue

control inputs

1x RJ45 Ethernet
1x USB

electronic crossover frequency

1.9 kHz

equalizer

free programmable parametric EQ´s

delay

up to 800 ms

weight

30 kg (66.1 lbs)

dimensions (w x h x d)

320 x 860 x 370 mm (12.6 x 33.9 x 14.6 inch)

design of the cabinet

lumber-core plywood with scratch proof structure coating black RAL9005,
other colours optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
