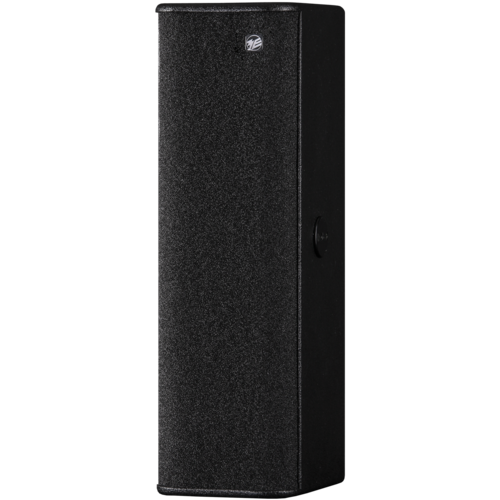

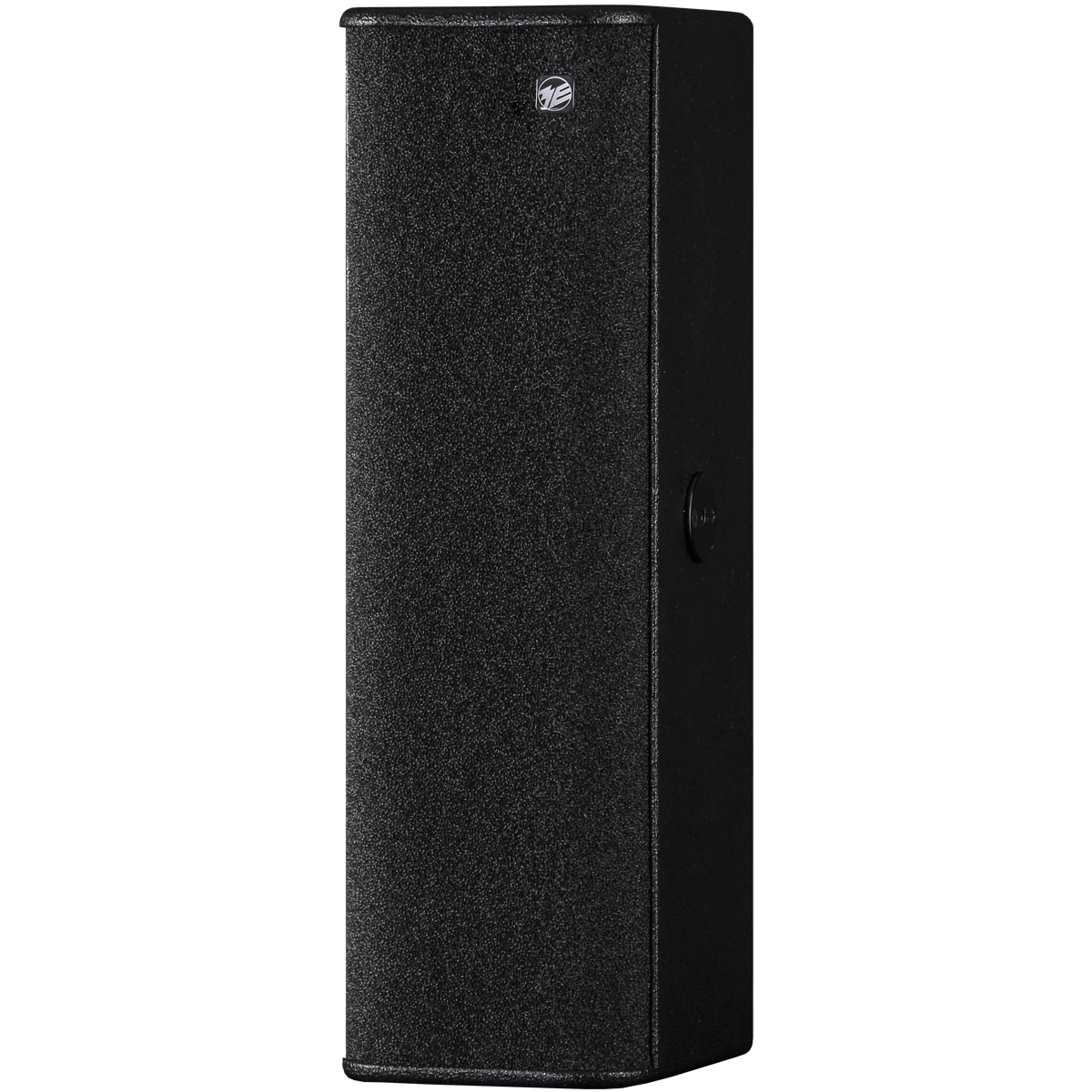

TS46KSP

Active coaxial loudspeaker with cardioid radiation characteristic

The coaxial two-way sound reinforcement system TS46KSP features a compact cabinet, neutral sound colour and very strong vertical focusing and high dynamics. The active concept guarantees a perfect combination of speakers and amplifiers. Therefore to every user an ultra compact and optically discrete speech reinforcement system is available, that works without a central amplifier rack system.

TS46KSP

The coaxial two-way sound reinforcement system TS46KSP features a compact cabinet, neutral sound colour and very strong vertical focusing and high dynamics. The active concept guarantees a perfect combination of speakers and amplifiers. Therefore to every user an ultra compact and optically discrete speech reinforcement system is available, that works without a central amplifier rack system. High class speech reproduction in small and middle sized auditoria was the main focus for the development of this equipment. Even in rooms with increased reverberation and longer listening distances an excellent speech audibility is achieved. Because of the vertical radiation characteristics, distractions by ceiling and floor reflections are highly reduced. This effect is supported furthermore by our reliable cardioid technology, allowing directed radiation characteristics in the bass range. Another advantage is the minimised microphone feedback in live situations. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

The components include four 4 inch cone woofers and eight 1 inch dome tweeters. Both are effectively secured from destruction by an internal protective circuit. The coaxial arrangement of the loudspeaker systems ensures a homogeneous coverage and this also reduces the size of these sound reinforcement systems. For use with music reproduction we suggest an enhancement of the bass transmission range by employing TT-subwoofers from ME Geithain.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

cardioid directivity in low frequencies

maximum SPL

116 dB peak / r = 1 m (3.3 ft)

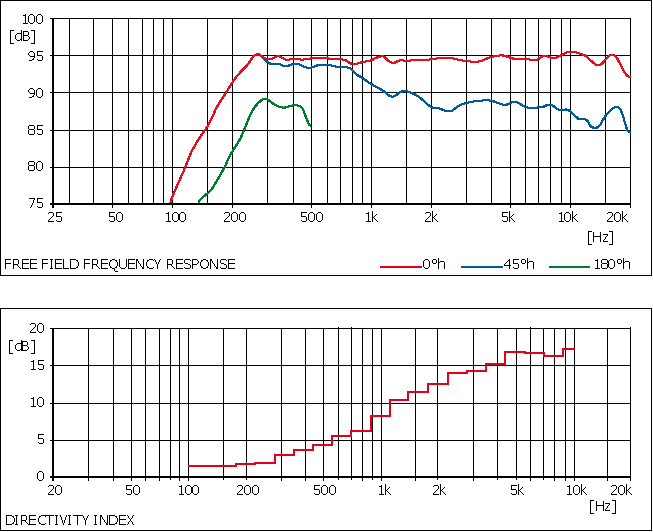

frequency response

150 Hz ... 20 kHz -6 dB

coverage angle f > 2 kHz

90° x 12° (h x v)

transducers

LF
4x 4" cone
HF
8x 1" dome tweeter

calibration
acoustic output level PE = -14 dBu


95 dB SPL / r = 1 m (3.3 ft)

mains voltage

115 ... 230 V ±15 %

input power

max. 400 VA

mains connector

IEC Powersocket

amplifier type

2-channel PWM amplifier

nominal output power

2x 180 W

maximum output power

2x 250 W

noise level

12 dB (A) / r = 1 m (3.3 ft)

input

1x XLR analogue

input level

-6 ... +6 dBu

output

1x XLR analogue

electronic crossover frequency

2.1 kHz

equalizer

free programmable parametric EQ´s

delay

up to 800 ms

weight

6.7 kg (14.7 lbs)

dimensions (w x h x d)

136 x 443 x 172 mm (5.4 x 17.4 x 6.8 inch)

design of the cabinet

lumber-core plywood with scratch proof structure coating black RAL9005,
other colours optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
