TS47K

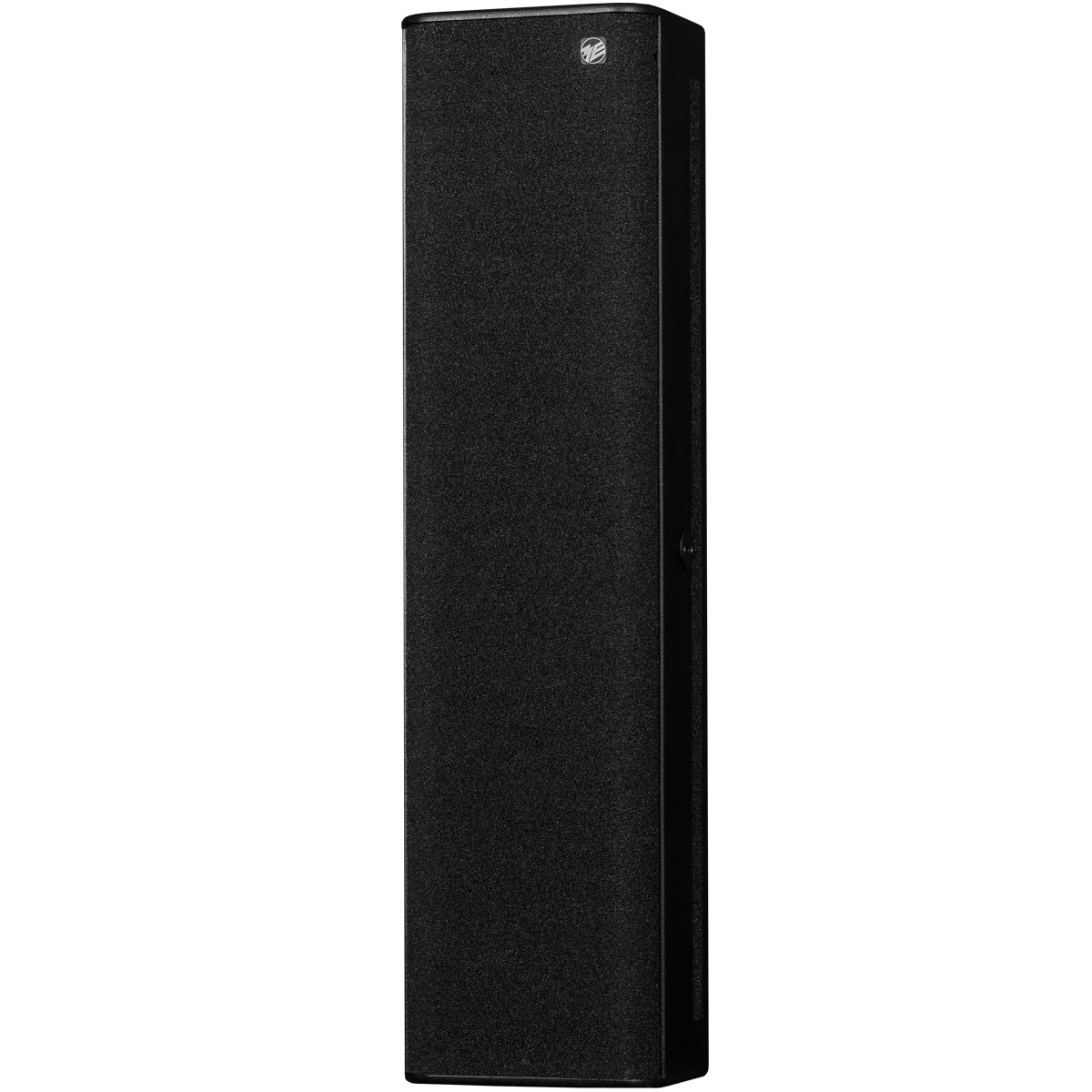

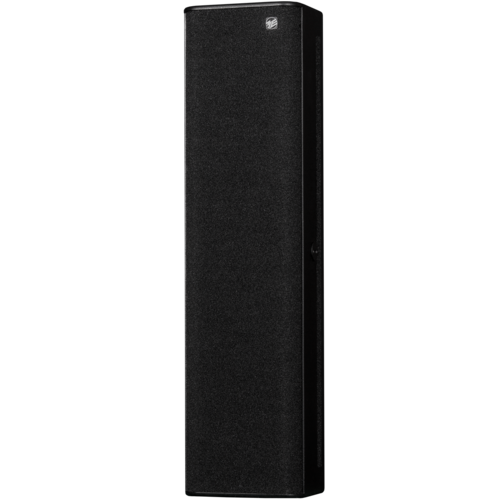

Passive coaxial loudspeaker with cardioid radiation characteristic

The coaxial two-way sound reinforcement system TS47K features a neutral sound colour and very strong vertical focusing and high dynamics. Compared to the provided power the TS47K is very compact. High class speech reproduction in middle and large sized auditoria was the main focus for the development of this equipment.

TS47K

The coaxial two-way sound reinforcement system TS47K features a neutral sound colour and very strong vertical focusing and high dynamics. Compared to the provided power the TS47K is very compact. High class speech reproduction in middle and large sized auditoria was the main focus for the development of this equipment. Even in rooms with increased reverberation and longer listening distances an excellent speech audibility is achieved. Because of the vertical radiation characteristics, distractions by ceiling and floor reflections are highly reduced. This effect is supported furthermore by our reliable cardioid technology, allowing directed radiation characteristics in the bass range. Another advantage is the minimised microphone feedback in live situations. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

The components include four 6.5-inch cone woofers and sixteen 1-inch dome tweeters. The latter are effectively secured from destruction by an internal protective circuit. The coaxial arrangement of the loudspeaker systems ensures a homogeneous coverage and this also reduces the size of these sound reinforcement systems. For use with music reproduction we suggest an enhancement of the bass transmission range by employing TT-subwoofers from ME Geithain.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

cardioid directivity in low frequencies

maximum SPL

126 dB peak / r = 1 m (3.3 ft)

frequency response

200 Hz ... 20 kHz - 6 dB

sensitivity
messured at 1 W


95 dB / r = 1m (3.3 ft)

coverage angle f > 2 kHz

90° x 8° (h x v)

maximum input power

960 watt

nominal input power

480 watt

nominal impedance

16 ohm

crossover frequency

2.2 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

2x Speakon NL4 (parallel)

transducers

LF
4 x 6.5“ cone
HF
16 x 1“ dome tweeter

overload protection

self-resetting

mechanical dimensions (w x h x d)

210 x 815 x 145 mm (8.27 x 32.01 x 5.71 inch)

weight

17 kg (37.5 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accesiors (optional)

security lug
stand, wall and ceiling mount elements
