TS52 / TS52K

Passive coaxial loudspeaker in vented box or with cardioid radiation characteristic

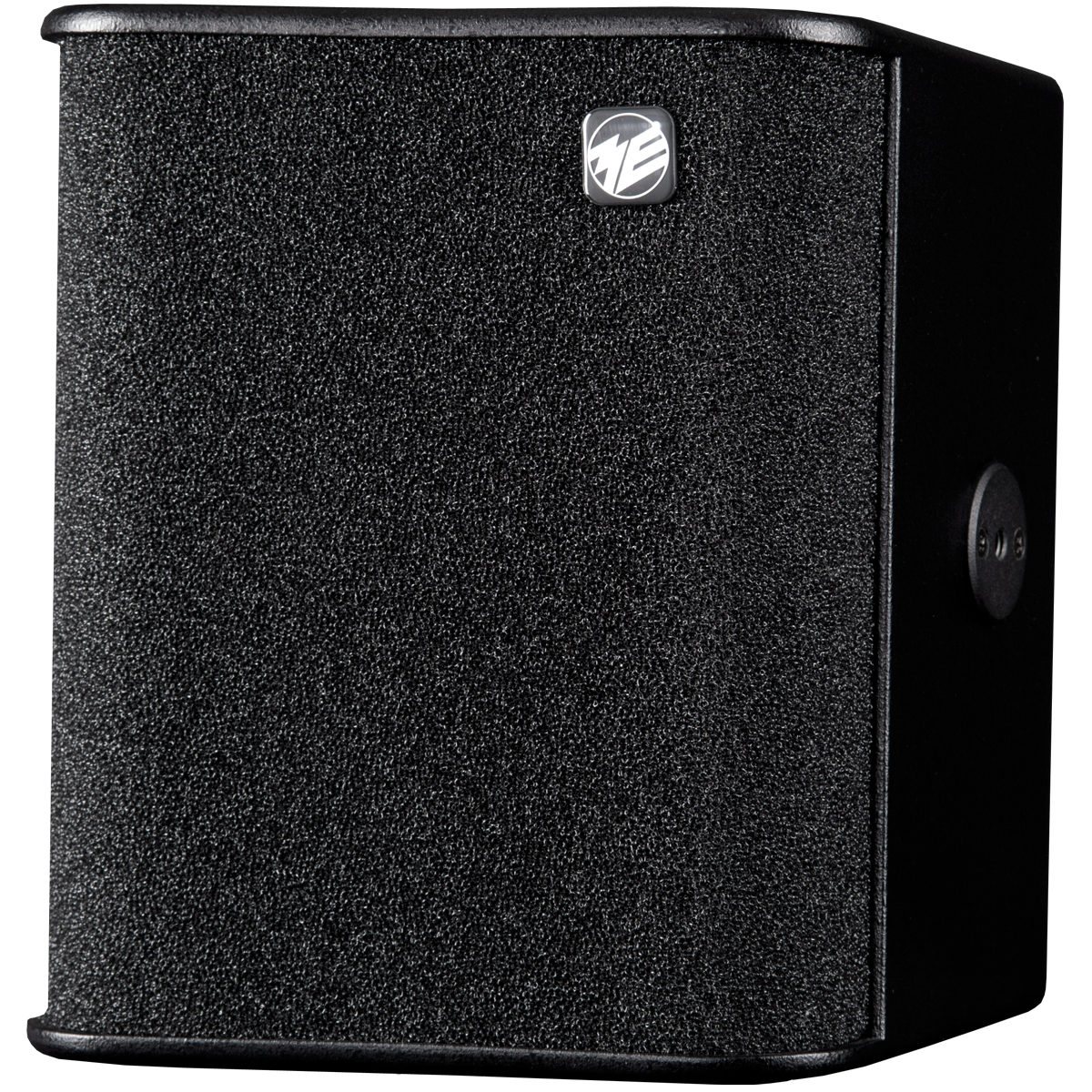

The coaxial two-way sound reinforcement systems TS52 and TS52K feature a compact cabinet, neutral sound colour, strong vertical focusing and high dynamics. These passive systems are engineered for high class speech and music reproduction in small and middle sized auditoria. In addition they remain optically discrete because of their small dimensions. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

TS52 / TS52K

The coaxial two-way sound reinforcement systems TS52 and TS52K feature a compact cabinet, neutral sound colour, strong vertical focusing and high dynamics. These passive systems are engineered for high class speech and music reproduction in small and middle sized auditoria. In addition they remain optically discrete because of their small dimensions. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

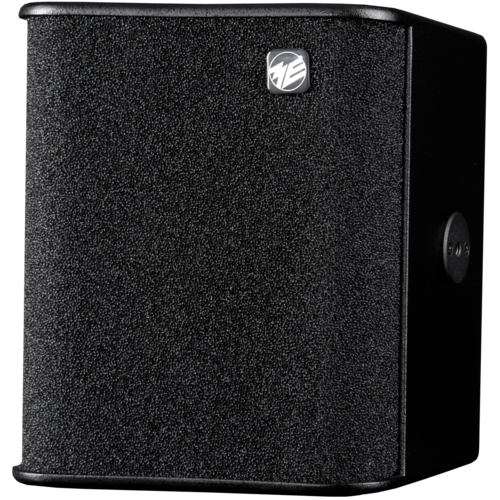

The components include one 6.5-inch cone woofer and four 1-inch dome tweeters. Both are effectively secured from destruction by an internal protective circuit. The coaxial arrangement ensures a homogeneous coverage and this also reduces the size of these powerful sound reinforcement systems. The TS52K employs our reliable cardioid technology. Because of the strong vertical focusing, distractions by ceiling and floor reflections are effectively reduced. Thanks to both of these technical features the operation of these speaker systems in acoustically difficult environments is simplified.

A variety of available mountings provide easy assembly for almost every application. Special adapters enable a vertical column of up to four TS52 or TS52K to flexibly adjust the acoustic reach to the actual case of applicatio

cabinet type

TS52
vented cabinet
TS52K
cardioid directivity in low frequencies

maximum SPL

116 dB peak / r = 1 m (3.3 ft)

frequency response

TS52
100 Hz ... 20 kHz -6 dB
TS52K
150 Hz ... 20 kHz -6 dB

sensitivity
messured at 1 W


92 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

90° x 25° (h x v)

maximum input power

240 watt

nominal input power

120 watt

nominal impedance

16 ohm
optional 100 V (100 / 200 / 400 ohm switchable)

Crossover frequency

2.2 kHz

directivity index
from 100 Hz ... 10 kHz

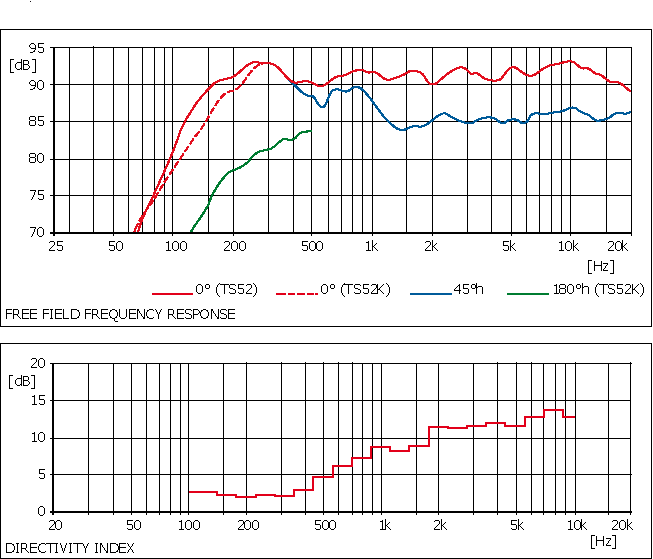

see diagram

input connector

2x Speakon NL4 (parallel)
optional 2x XLR4 (at 100 V)

transducers

LF
1x 6.5" cone
HF
4x 1" dome tweeter

overload protection

self-resetting

mechanical dimensions w x h x d

210 x 250 x 250 mm (8.27 x 9.84 x 9.84 inch)

weight

without 100 V transformer (standard)
5.5 kg (12.1 lbs)
with 100 V transformer (optional)
6.3 kg (13.9 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements

Brochure and operation manual
