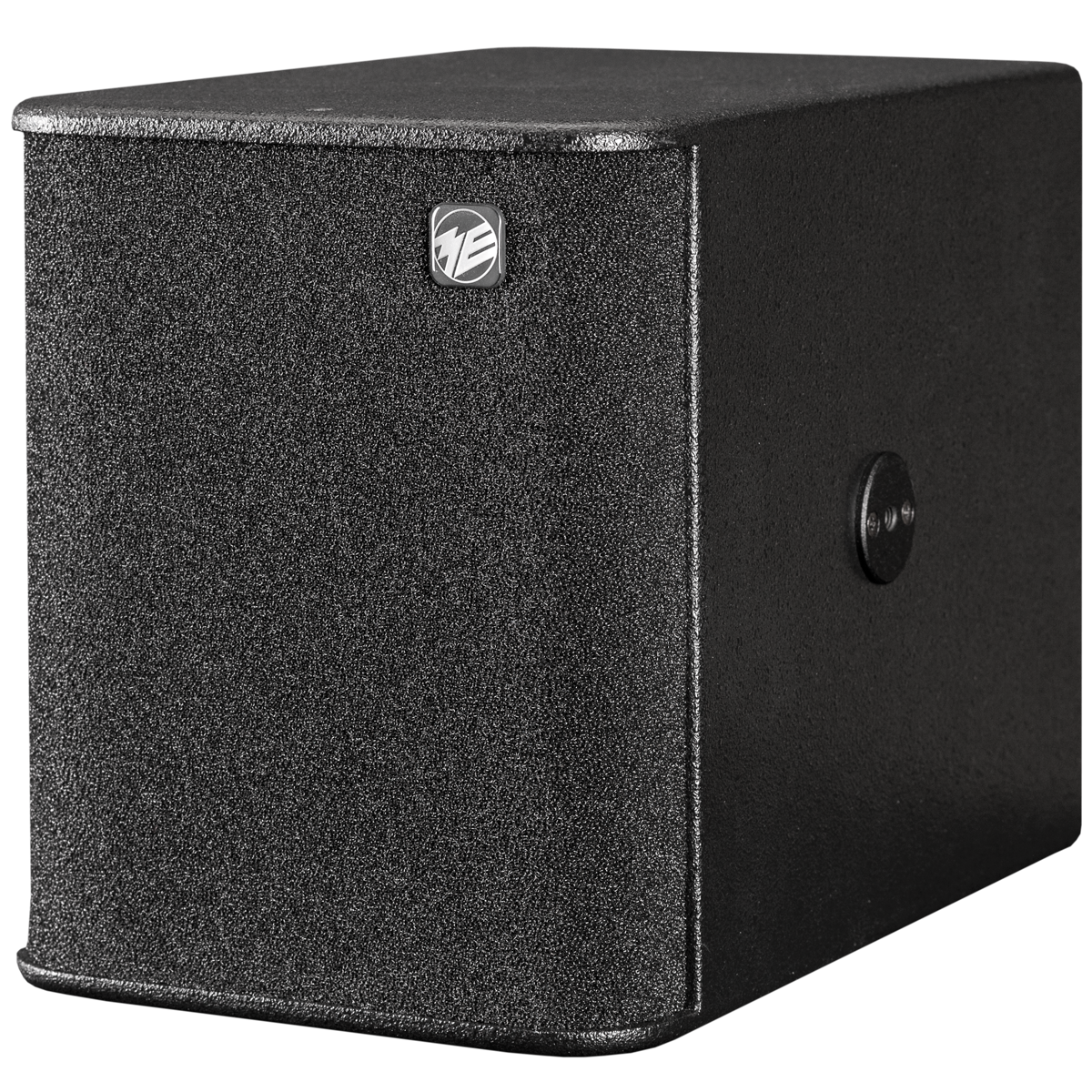

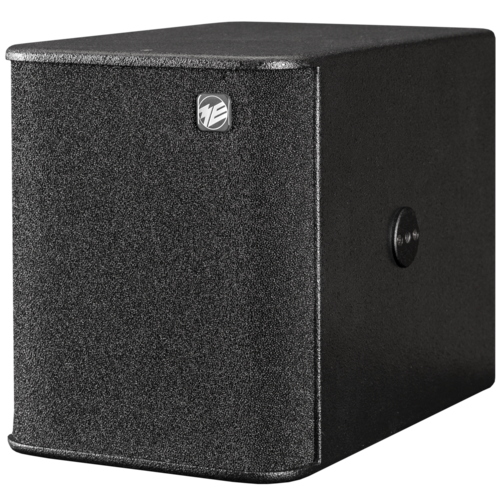

TS52SP

Active coaxial loudspeaker in vented box

The active, coaxial two-way sound reinforcement system TS52SP features a compact cabinet, neutral sound colour, strong vertical directivity and high dynamics. This passive system is engineered for high class speech and music reproduction in small and middle sized auditoria. In addition it remains optically discrete because of it's small dimensions.

TS52SP

The active, coaxial two-way sound reinforcement system TS52SP features a compact cabinet, neutral sound colour, strong vertical directivity and high dynamics. This passive system is engineered for high class speech and music reproduction in small and middle sized auditoria. In addition it remains optically discrete because of it's small dimensions. The small size and active amplification increase the flexibility when choosing the installation place, because an amplifier is not needed. Connection to the professional digital mixing consoles is provided by AES/EBU inputs and outputs. The adjustment to the size of the auditorium is facilitated by an adjustable delay and additional inputs and outputs allowing feed-through of the audio signal. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

The components include one 6.5 inch cone woofer and four 1 inch dome tweeters. Both are effectively secured from destruction by an internal limiter. The coaxial arrangement ensures a homogeneous coverage and this also reduces the size of these powerful sound reinforcement systems.

A variety of available mountings provide easy assembly for almost every application. Special adapters enable a vertical column of up to four TS52SP to flexibly adjust the acoustic reach to the actual case of application.

cabinet type

vented cabinet

maximum SPL

116 dB peak / r = 1 m (3.3 ft)

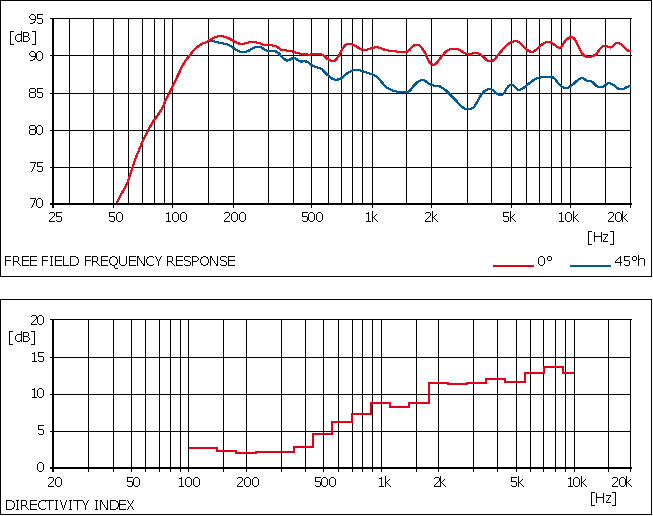

frequency response

100 Hz ... 20 kHz -6 dB

coverage angle f > 2 kHz

90° x 25° (h x v)

transducers

LF
1x 6.5" cone
HF
4x 1" dome tweeter

calibration
acoustic output level PE = -14 dBu


90 dB SPL / r = 1 m (3.3 ft)

mains voltage

85 ... 260 V

input power

max. 800 VA

mains connectors

1x Powercon
1x Powercon loop

amplifier type

2-channel PWM amplifier

nominal output power

2x 250 W

maximum output power

2x 250 W

noise level

6 dB (A) / r = 1 m (3.3 ft)

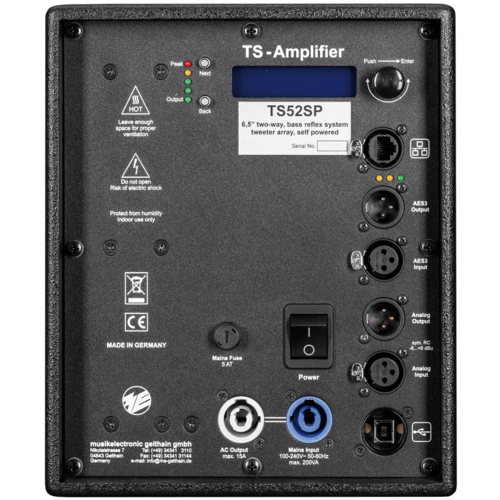

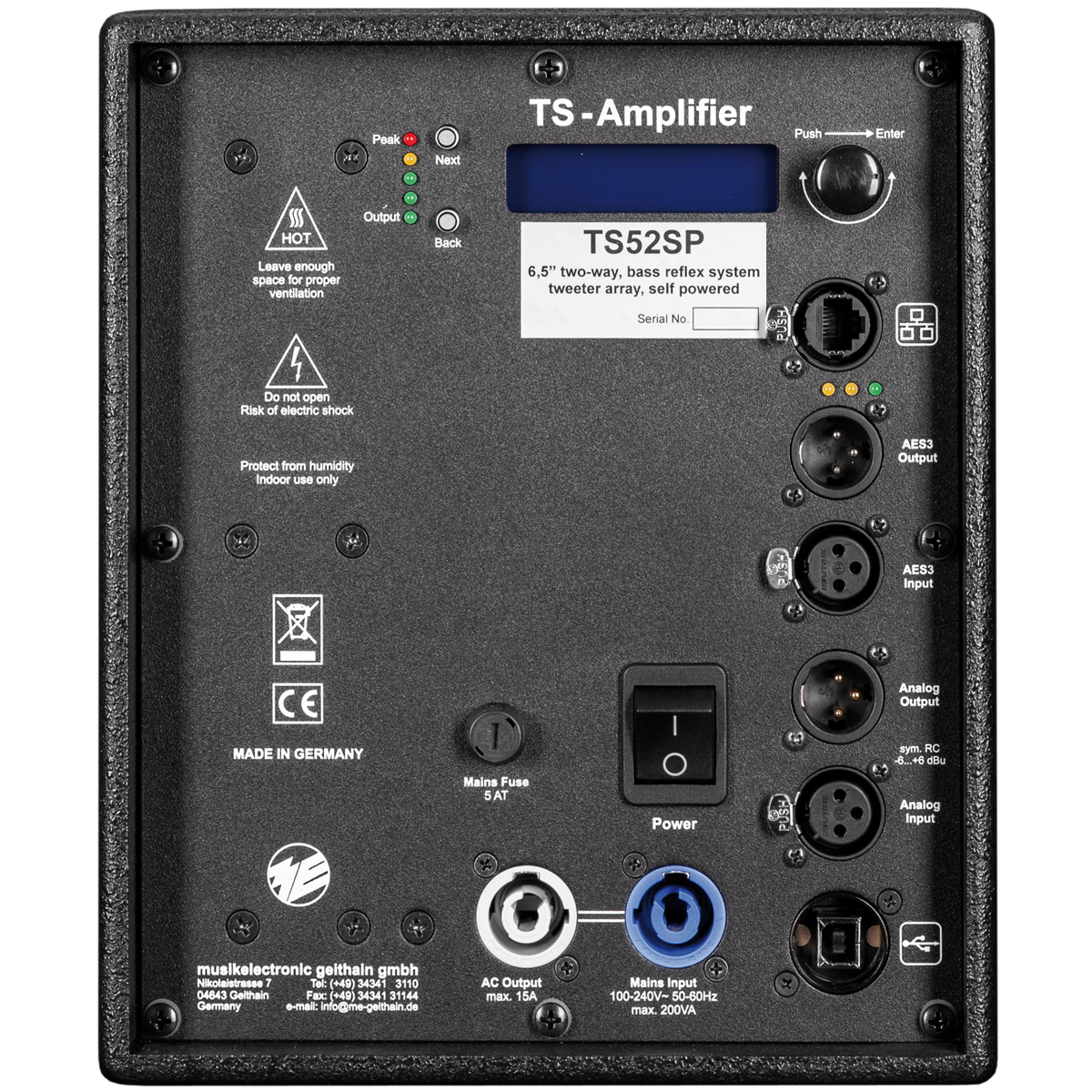

input

1x XLR analogue
1x XLR AES/EBU

input level

-6 ... +6 dBu

output

1x XLR analogue
1x XLR AES/EBU

control inputs

1x RJ45 Ethernet
1x USB

electronic crossover frequency

2.2 kHz

equalizer

free programmable parametric EQ´s

delay

up to 1000 ms

weight

8 kg (17.6 lbs)

dimensions (w x h x d)

210 x 250 x 330 mm (8.3 x 9.8 x 13 inch)

design of the cabinet

lumber core plywood with scratch proof structure coating black RAL9005,
other colours optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
