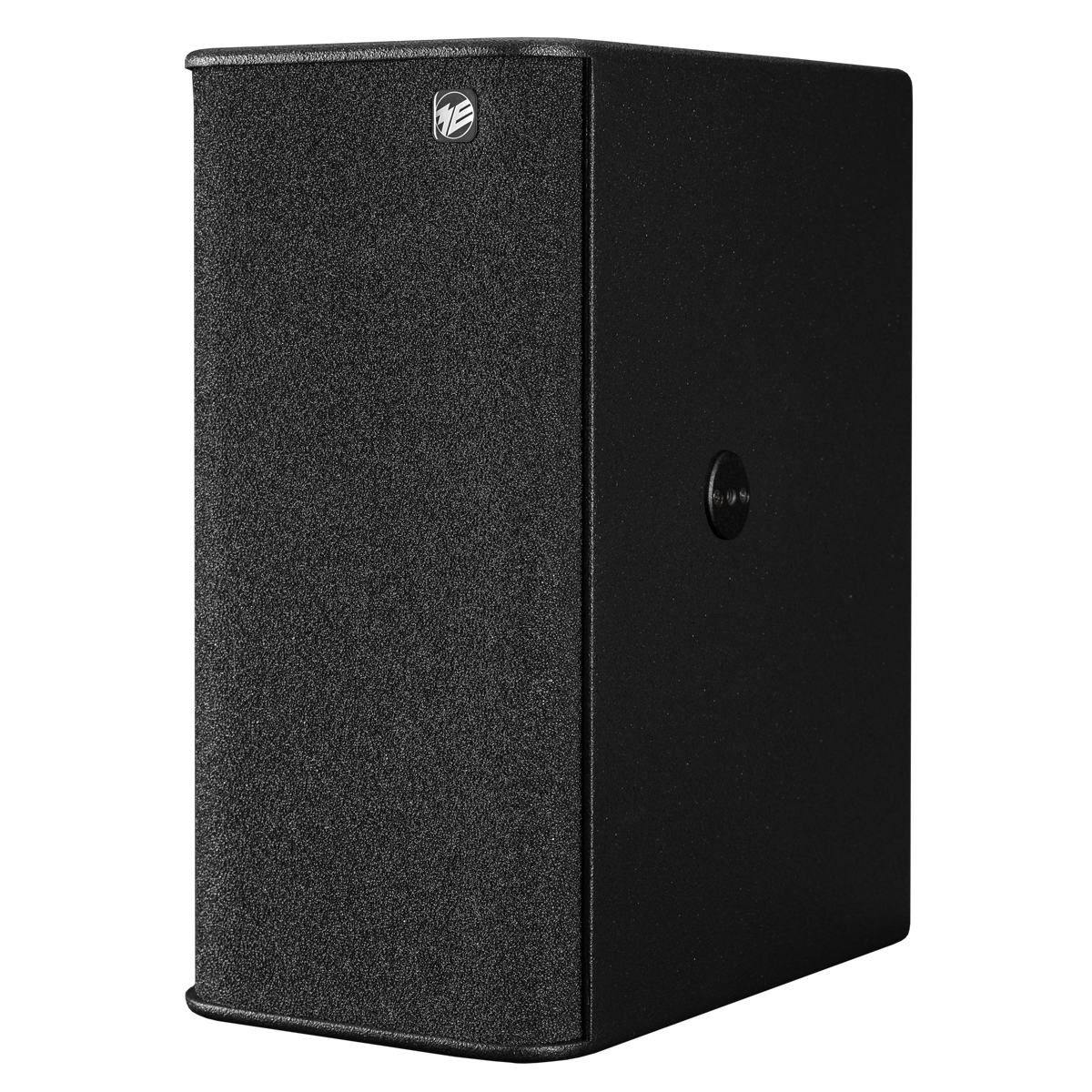

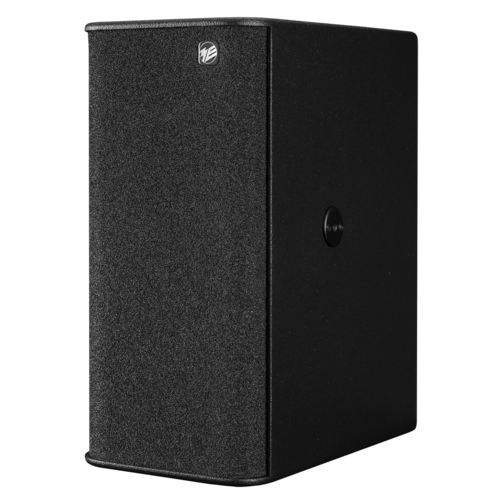

TS53KSP

The active, coaxial two-way sound ­rein­forcement system TS 53KSP features a compact cabinet, neutral sound colour, strong vertical directivity and high dynamics. This active system is engineered for high class speech and music reproduction in small and middle sized auditoria. In addition it remains optically discrete because of its small dimensions. The small size and active amplification increase the flexibility when choosing the installation place, because an amplifier is not needed. Connection to the professional digital mixing consoles is provided by AES/EBU inputs and outputs. The adjustment to the size of the auditorium is facilitated by an adjustable delay and additional inputs and outputs allowing feed-through of the audio signal. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

The components include two 6.5-inch cone woofers and eight 1-inch dome tweeters. Both are effectively secured from destruction by an internal limiter. The coaxial arrangement ensures a homogeneous dispersion and this also reduces the size of these powerful sound reinforcement systems. Because of the strong vertical directivity, distractions by ceiling and floor reflections are effectively reduced. Thanks to both of these technical features the operation of these speaker systems in acoustically difficult environments is simplified. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave.

A variety of available mountings provide easy assembly for almost every application. Special adapters enable a vertical column of up to four TS 53KSP to flexibly adjust the acoustic reach to the actual case of application.
