TS54

Passive coaxial loudspeaker in vented box

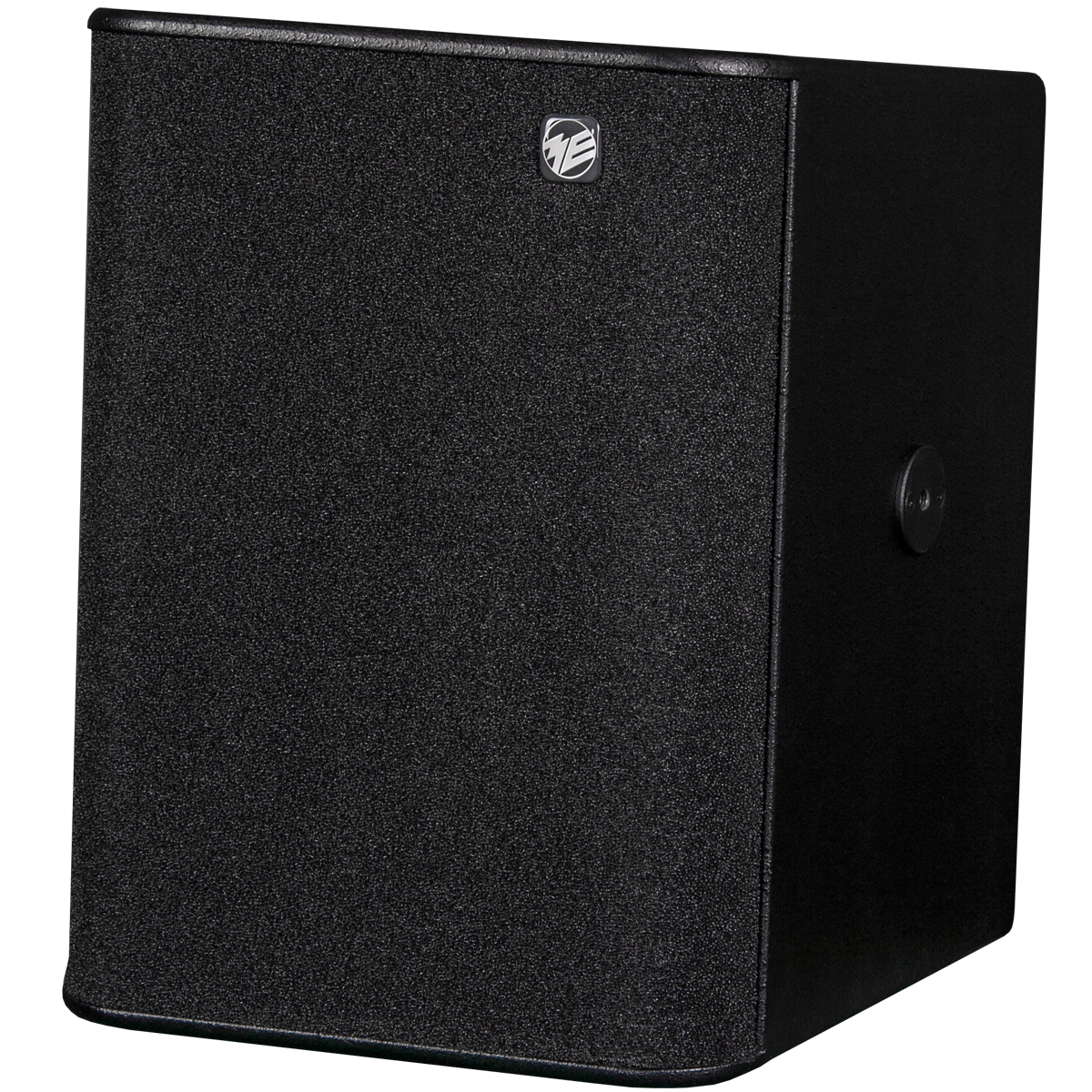

The coaxial two-way sound reinforcement system TS54 features a compact cabinet, neutral sound colour, strong vertical focusing and high dynamics. This passive system is engineered for high class speech and music reproduction in small and middle sized auditoria.

TS54

The coaxial two-way sound reinforcement system TS54 features a compact cabinet, neutral sound colour, strong vertical focusing and high dynamics. This passive system is engineered for high class speech and music reproduction in small and middle sized auditoria. In addition it remains optically discrete because of its small dimensions. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

The components include one 8-inch cone woofer and six 1-inch dome tweeters. The latter are effectively secured from destruction by an internal protective circuit. The coaxial arrangement ensures a homogeneous coverage and this also reduces the size of these powerful sound reinforcement systems. With bass reflex tuning TS54 reaches a lower cut-off frequency of 70 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave. Because of the strong vertical focusing, distractions by ceiling and floor reflections are effectively reduced. Thanks to both of these technical features the operation of these speaker systems in acoustically difficult environments is simplified.

A variety of available mountings provide easy assembly for almost every application. Special adapters enable a vertical column of up to two TS54 to flexibly adjust the acoustic reach to the actual case of application.

cabinet type

vented cabinet

maximum SPL

118 dB peak / r = 1 m (3.3 ft)

frequency response

70 Hz ... 20 kHz -6 dB

sensitivity
messured at 1 W


92 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

90° x 22° (h x v)

maximum input power

400 watt

nominal input power

200 watt

nominal impedance

8 ohm

Crossover frequency

2 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

2x Speakon NL4 (parallel)

transducers

LF
1x 8" cone
HF
6x 1" dome tweeter

overload protection

self-resetting

mechanical dimensions w x h x d

265 x 350 x 340 mm (10.43 x 13.78 x 13.39 inch)

weight

6.3 kg (13.86 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements

Brochure and operation manual

Drawings
