TT18KSP

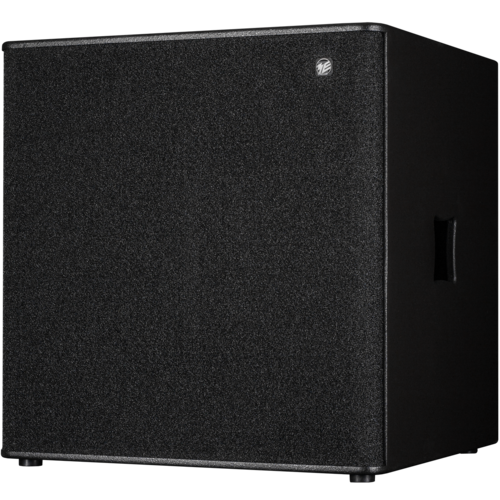

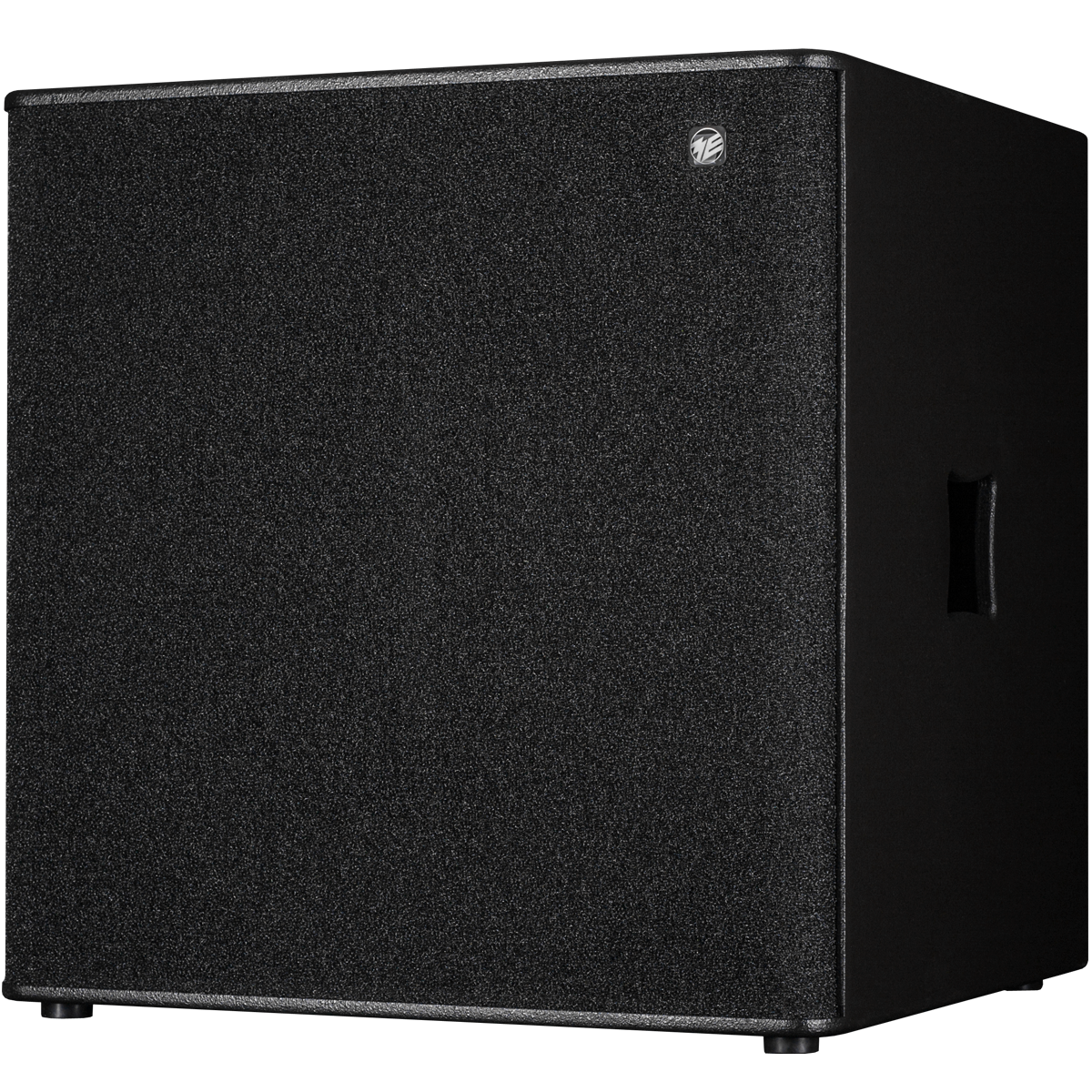

Active subwoofer with cardioid radation characteristic

The active bass reinforcement systems TT12SP1 ... 3, TT15SP1 ... 3 and TT18KSP1 ... 3 extend the bass transmission range of our TS series speakers by more than one octave. Depending on the case of application and the required maximum level three different versions are offered.

TT18KSP

The active bass reinforcement systems TT12SP1 ... 3, TT15SP1 ... 3 and TT18KSP1 ... 3 extend the bass transmission range of our TS series speakers by more than one octave. Depending on the case of application and the required maximum level three different versions are offered. Beginning with compact 12 and 15-inch bass reflex systems to the high power subwoofer with 18-inch long throw driver and cardioid technology harmonise technically and optically with our mid top cabinets from the TS series. These systems feature high dynamics and low distortion. Besides the technical advantages of the subwoofers from ME Geithain all equipment share a robust cabinet from ply hardwood, impact-resistant coating on polyurethane base, pocket handles and a top hat fitting for the attachment of an adjustable pole.

Thanks to configurable active filters and integrated power amplifiers there is no need for a loudspeaker management system or additional amplifiers to operate them, because the subwoofers from the TT...SP series come with integrated amplifiers to drive passive mid top cabinets. The use of active speakers from the TS  series is also possible. We offer the power amplifier in three variants. One with stereo input (TT...SP2) for small 2.1 systems, a mono version (TT...SP1) for greater applications and third, a subwoofer version (TT..SP3) to support all active cabinets. The amplifier of the mono variant (TT...SP1) can drive a second passive bass and a mid top cabinet with up to 1000 W.

The front is secured against damages optically neutral with a perforated steel grille fronted by acoustic foam.

cabinet type

TT12SP1 / TT12SP2 / TT12SP3
vented cabinet
TT15SP1 / TT15SP2 / TT15SP3
vented cabinet
TT18KSP1 / TT18KSP2 / TT18KSP3
cardioid directivity and vented cabinet

maximum sound pressure level

TT12SP1 / TT12SP2 / TT12SP3
123 dB peak / r = 1 m (3.3 ft)
TT15SP1 / TT15SP2 / TT15SP3
126 dB peak / r = 1 m (3.3 ft)
TT18KSP1 / TT18KSP2 / TT18KSP3
129 dB peak / r = 1 m (3.3 ft)

frequency response

40 ... 180 Hz -6 dB

power amplifier variant TT...SP1 (mono)

CH1 (TT)
max. 1500 W @ 8 ohms (only active bass)
max. 2500 W @ 4 ohms (+ passive bass)
CH2 (Top)
max. 1000 W @ 8 ohms

power amplifier variant TT...SP2 (stereo)

CH1 (TT)
max. 1500 W @ 8 ohms
CH2 (Top L)
max. 800 W @ 4 ohms
CH3 (Top R)
max. 800 W @ 4 ohms

power amplifier variant TT...SP3 (sub only)

CH1 (TT)
max. 1500 W @ 8 ohms (only active bass)
max. 2500 W @ 4 ohms (+ passive bass)

connectors variant TT...SP1 (mono)

inputs
1x XLR input RC symm. +6 dBU
outputs
1x XLR loop output
1x Speakon NL4 SUB
1x Speakon NL4 TOP
mains connectors
1x Powercon IN (85 ... 265 V; 50 ... 60 Hz; max. 2400 VA)
configuration interfaces
1x Powercon OUT (max. 15 A)
1x USB
1x RJ45 Ethernet

connectors variant TT...SP2 (stereo)

inputs
2x XLR input RC symm. +6 dBU
outputs
2x Speakon NL4 TOP
mains connectors
1x Powercon IN (85 ... 265 V; 50 ... 60 Hz; max. 2400 VA)
configuration interfaces
1x Powercon OUT (max. 15 A)
1x USB
1x RJ45 Ethernet

connectors variant TT...SP3 (sub only)

inputs
1x XLR input RC symm. +6 dBU
outputs
1x XLR loop output
1x Speakon NL4 SUB
mains connectors
1x Powercon IN (85 ... 265 V; 50 ... 60 Hz; max. 2400 VA)
configuration interfaces
1x Powercon OUT (max. 15 A)
1x USB
1x RJ45 Ethernet

equalizer

10x free programmable EQ´s per input channel

transducers

TT12SP1 / TT12SP2 / TT12SP3
12" cone
TT15SP1 / TT15SP2 / TT15SP3
15" cone
TT18KSP1 / TT18KSP2 / TT18KSP3
18" cone

mechanical dimensions (w x h x d)

TT12SP1 / TT12SP2 / TT12SP3
470 x 470 x 510 mm (18.5 x 18.5 x 20.1 inch)
TT15SP1 / TT15SP2 / TT15SP3
550 x 550 x 600 mm (21.7 x 21.7 x 23.6 inch)
TT18KSP1 / TT18KSP2 / TT18KSP3
660 x 660 x 590 mm (26.0 x 26.0 x 23.2 inch)

weight

TT12SP1 / TT12SP2 / TT12SP3
34.5 kg (76.1 lbs)
TT15SP1 / TT15SP2 / TT15SP3
39.5 kg (87.1 lbs)
TT18KSP1 / TT18KSP2 / TT18KSP3
49.5 kg (109.1 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating black RAL9005, other colours optional
integrated connector for speaker stands with M20 thread
