BCU7.1

Analog bass management system

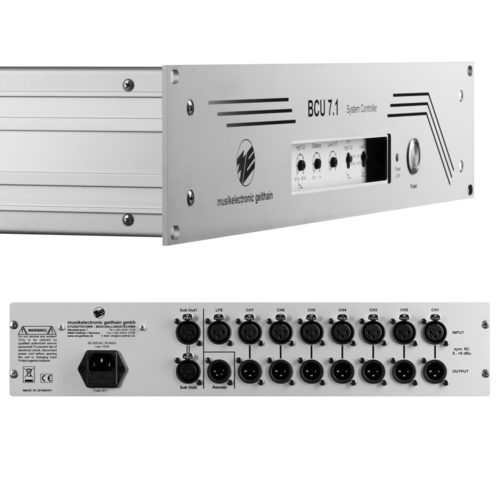

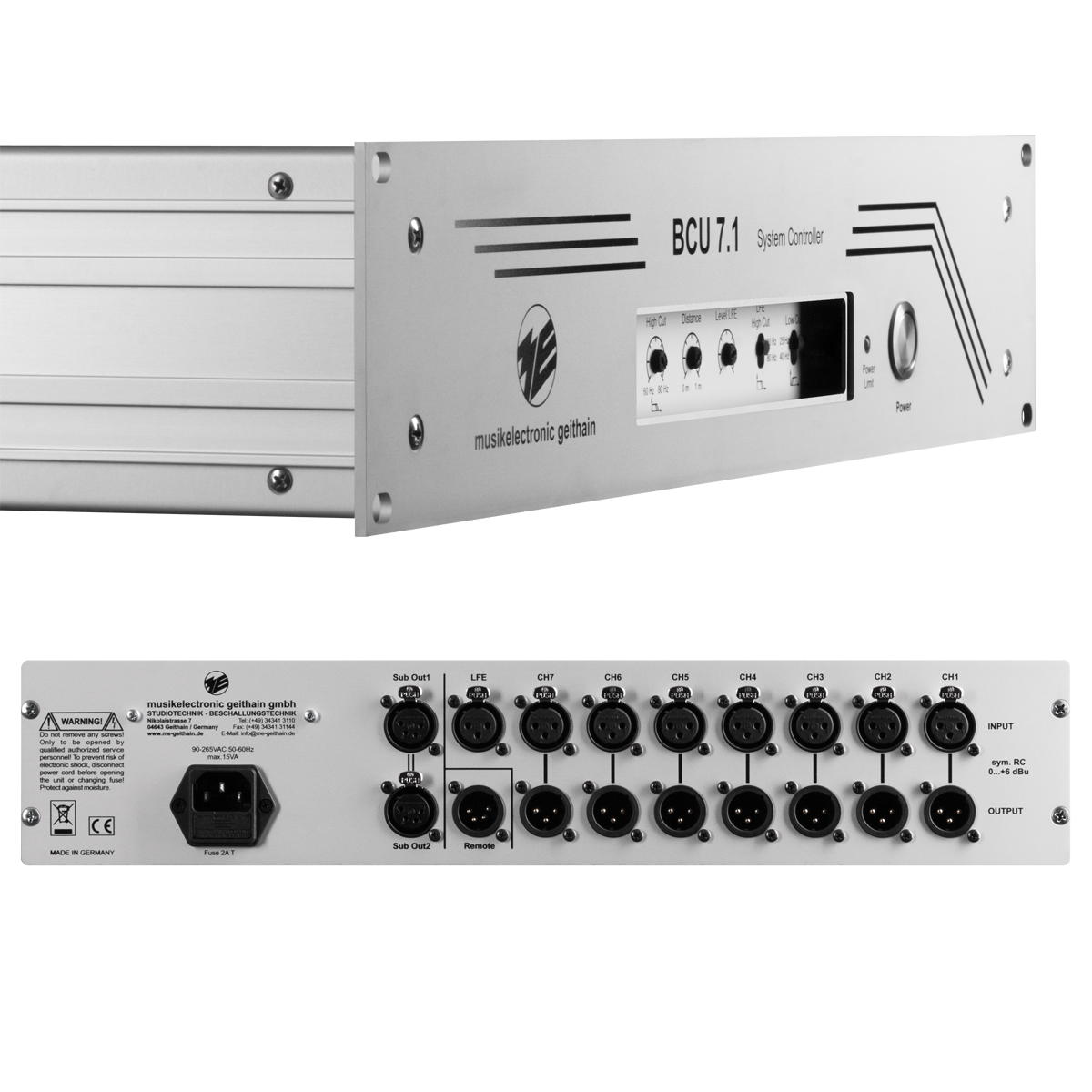

The analog bass management system BCU7.1 is used in addition to our BASIS models and is employed everywhere, where source systems don‘t provide a separate bass mangement system, e.g. in outside broadcasting vans our small post production studios.

BCU7.1

The analog bass management system BCU7.1 is used in addition to our BASIS models and is employed everywhere, where source systems don‘t provide a separate bass mangement system, e.g. in outside broadcasting vans our small post production studios. The BCU7.1 is geared for application with active subwoofers from the BASIS series and provide enough flexibility for optimal adjustment to the application site without being confronted with a complicated control concept. The bass management system applies all tasks of filtering, equalisation, level adjustment of the subwoofer as well as bass signal limiting. It is connected via a special XLR4 cable to the MPI (Multipurpose Input) of the actual BASIS model. Because of a compact cabinet it is easily integrated into existing setups. In contrast to other alternatives, where the bass management system is integrated into the subwoofer, with BCU7.1 wiring effort is significantly reduced.

Input connectors

Satellites
7x XLR 3F
LFE
1x XLR 3F
Remote
1x XLR 4M

Nominal input level

- 4 dBu ... + 6 dBu adjustable

Input impedance

> 10 kOhm RC balanced

Output connectors

Satellites
7x XLR 3M
Subwoofer
2x XLR 4F

Ausgangspegel

Satellites
+ 6 dBu at 2 kOhm
Subwoofer
adjustable

Output impedance

50 Ohm balanced

Filter characteristics

TP
24 dB / oct.
HP
12 dB / oct. 80 Hz

Crossover frequencies

Satellites
HP 80 Hz
Subwoofer
TP 60 ... 80 Hz continuously adjustable
LFE
TP 80 / 120 Hz switchable

Bandwidth

In connection with BASIS11K/13K/14K
25 / 40 Hz switchable
60 ... 80 Hz continuously adjustable
LFE channel
25 / 40 Hz switchable
80 / 120 Hz switchable

Inherent noise sound leve

In connection with BASIS11K/13K/14K
GK0 / DIN 15996 r = 1 m

Dimensions

2 U in 19-inch rack

Weight

3.3 kg (7.26 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C
for storage
- 25°C ... + 45°C
humidity
45 % ... 75 %

Connection between BCU7.1 and BASIS

Standard length 5 m; other lengths optional available
