ME 801K1

3-way-coaxial-compact-loudspeaker with cardioid radiation characteristic in bass range

High level + large room = big loudspeaker? The ME801K1 is about to rebut that. Longer reverb, larger rooms and listening distances easily spoil the fun for the ambitious music listener. The ME801K1 makes use of a few things out of the bag of tricks filled throughout the long history of the company with much technical know how.

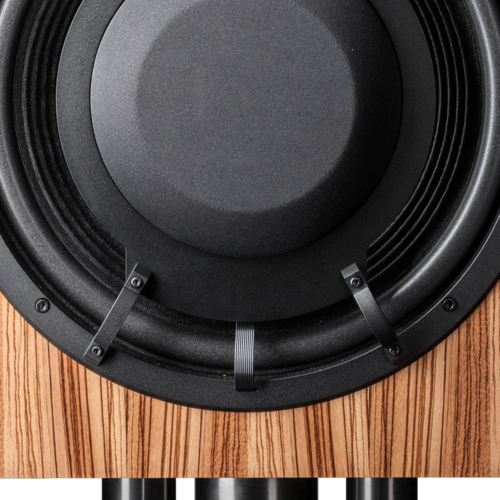

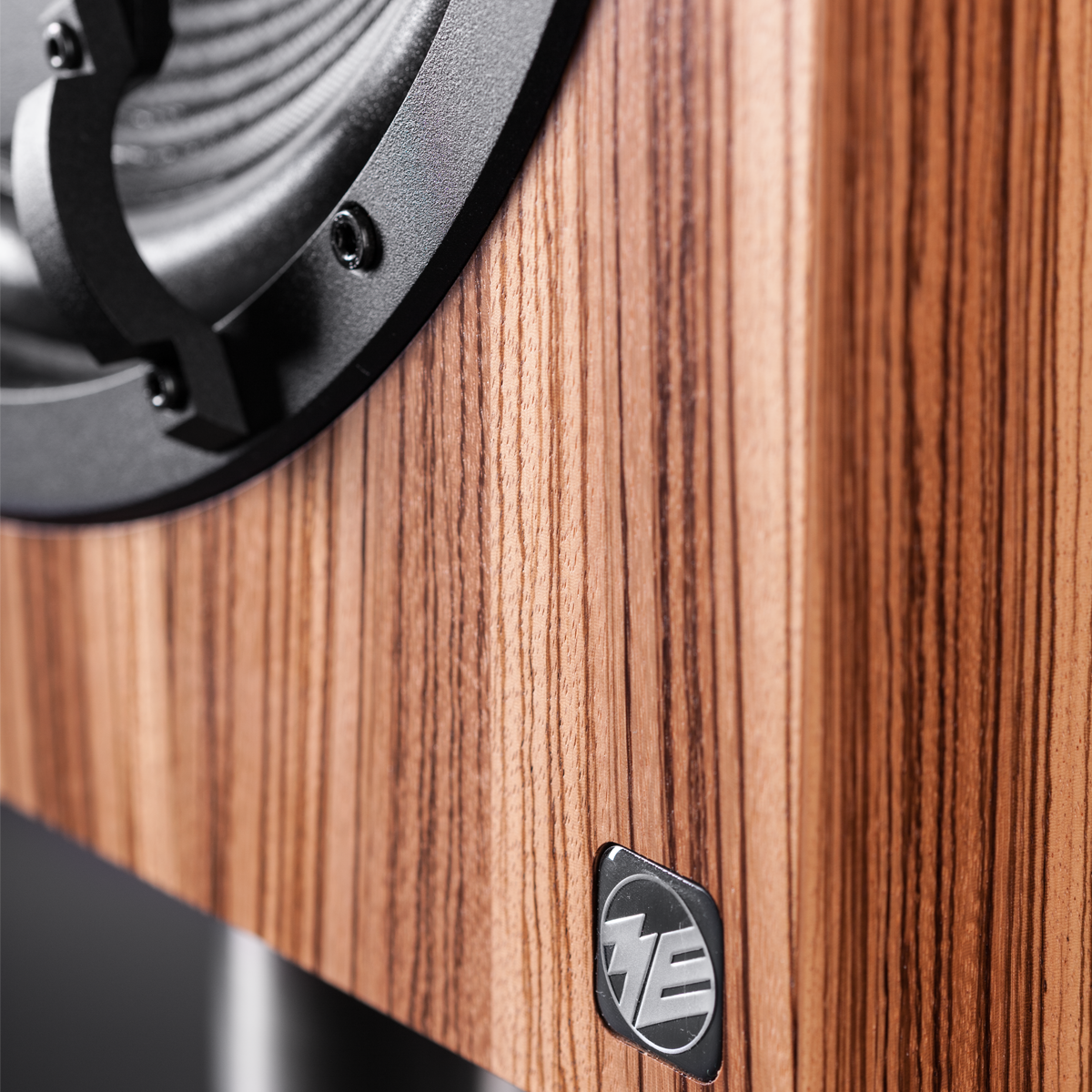

(shown veneer: zebrawood nature)

ME 801K1

High level + large room = big loudspeaker? The ME801K1 is about to rebut that. Longer reverb, larger rooms and listening distances easily spoil the fun for the ambitious music listener. The ME801K1 makes use of a few things out of the bag of tricks filled throughout the long history of the company with much technical know how.

As well as the legendary RL901K the ME801K1 uses a 16 inch long throw woofer. ME Geithain's typical cardioid dispersion behaviour in the lower frequency range from 25 to 250 Hz minimizes reflections behind the speakers so positioning is less critical. A high efficiency 6.5 inch mid range cone driver and an array of three 1 inch dome tweeters are coaxially mounted in front of the low range driver. This arrangement ensures the directivity that is needed in large rooms to minimize reflections and provides an irresistible spatiality. Their high sensitivity offer not only impressive level and dynamic capabilities but also low distortion. The consequent use of the coaxial technology has another undeniable advantage: the size of the speaker is obviously reduced. Thanks to housing the amplifier in its own cabinet the dimensions are further reduced. The electronic part consists of three PWM amplifiers and an analogue filter equipped with a room equalization filter to adjust the speaker to the position in and the properties of the listening room. The amplifiers deliver a power of 1000 W in the low frequency channel and 500 W each in the mid and treble channels. Therefore dynamical limits of the whole system are no concern.

Despite all of these features the ME801K1 sticks to its roots and has all the virtues our customers value: neutrality, homogeneity, low colouration and longevity.

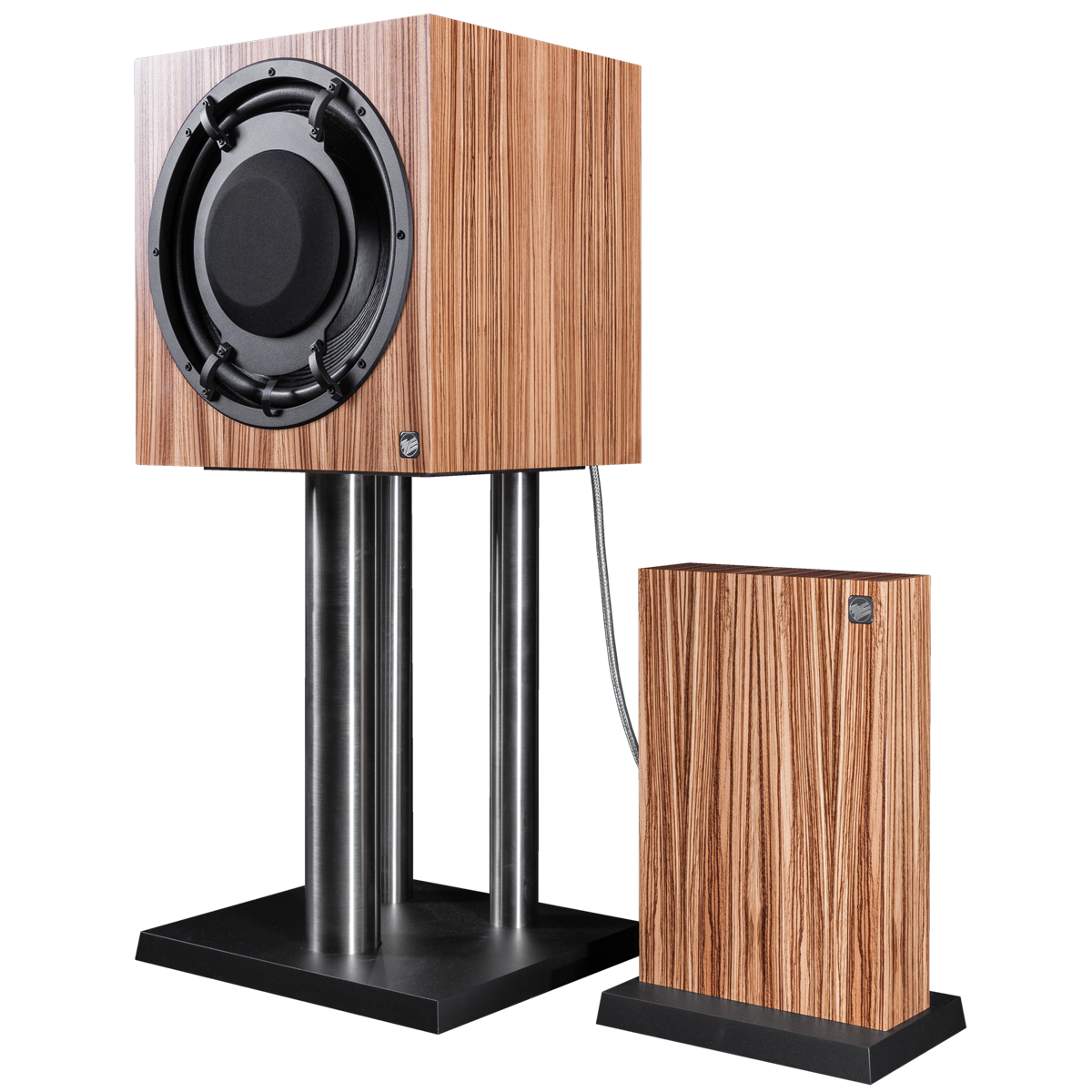

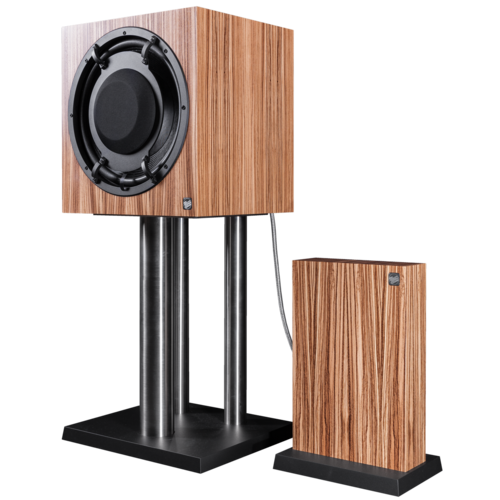

An elegant stand for the ME801K1 is available upon request.

General

Active 3-way coaxial-loudspeaker for listening distances from 3 m to 6 m

Maximum SPL

to IEC 268-1
≥ 117 dB
from 100 Hz ... 10 kHz
122 dB peak / r = 1 m (3.3 ft)

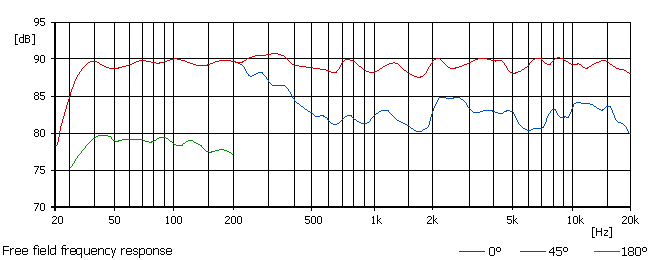

Bandwidth

25 Hz ... 22 kHz - 6 dB

Calibration:
acoustic output level PE = - 14 dBu

90 dB / r = 1 m (3.3 ft)

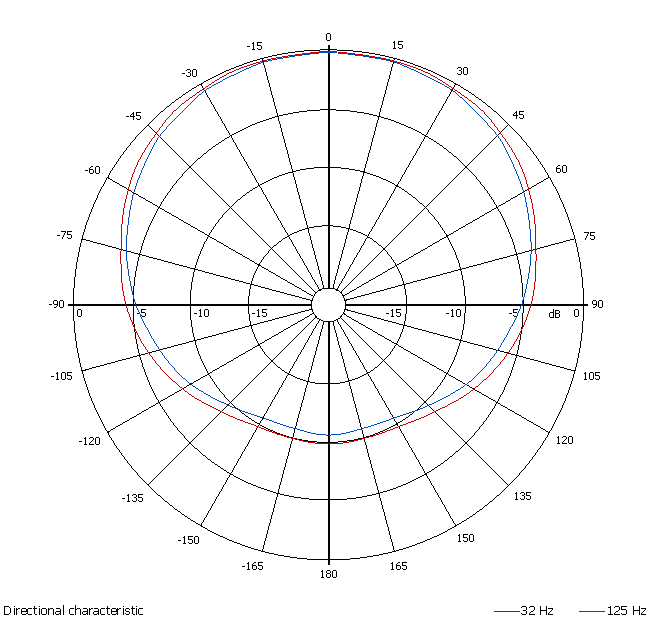

Directivity index
from 100 Hz ... 10 kHz


increasing from 4 dB to 13 dB

Inherent noise sound level

≤ 10 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 100 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 45 dB

Nominal input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhms RC symmetrically

Electronic crossover frequencies

550 Hz and 2.2 kHz

Nominal output power of the amplifier

LF
max. 1.000 W / 4 Ohms
MF
max. 500 W / 4 Ohms
HF
max. 500 W / 4 Ohms

Input connector

XLR 3F (programme input)

Output connector

XLR 3M (bass expansion)

Loudspeaker systems

Woofer
400 mm (16 in) cone
Mid-range unit
160 mm (6 in) cone
Tweeter
25 mm (1 in) dome

Operation and clipping indicator

LED on front side

Power requirements

90 ... 132 V; 55 Hz ... 65 Hz
190 ... 265 V; 45 Hz ... 55 Hz

Power consumption

30 VA at standby
max. 1000 VA at full load

Mains connection

IEC power connector with HF-filter

Connection between loudspeaker
and amplifier case

Speakon NL8; shielded cable
Standard length 1.50 m; optionally available in other lengths

Dimensions (h x w x d)

Loudspeaker
480 x 460 x 400 mm (18.9 x 18.1 x 15.8 in)
Amplifier
495 x 330 x 220 mm (19.5 x 13.0 x 8.7 in)
Pedestal
600 x 470 x 410 mm (23.6 x 18.5 x 16.1 in)

Weight

Loudspeaker
36.5 kg (80.5 lbs)
Amplifier
11.0 kg (24.3 lbs)
Pedestal
17.0 kg (37.5 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 % ... 75 %

Design of the cabinet

MDF-wood in ash black veneered; optionally different veneers or colors

loudspeaker
optionally available with holding device
amplifier
base plate in microstructure semi-gloss-black

pedestal (optional available)

fillable columns and top plate in polished stainless steel
base plate in microstructure semi-gloss-black

Pedestal

  • height (top edge ME 801K1): ca. 1080 mm (42.5")
  • base plate (B x T): 470 x 410 mm (18.5" x 16.1")
  • fillable pillars and top plate in polished stainless steel
  • base plate in microstructure semi-gloss-black

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
